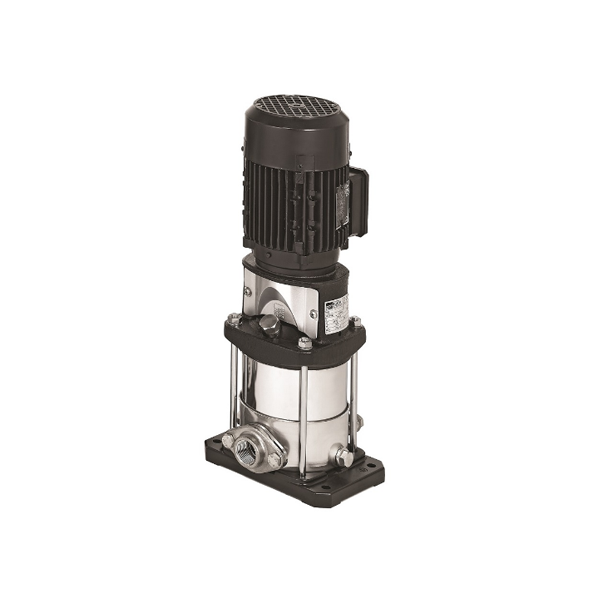

Ebara EVMS3 (N) 230V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS3 2N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 14.7 m SKU: 112-444 RRP: £607.00 Our Price:
£424.90
Model: EVMS3 3N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 22.1 m SKU: 112-445 RRP: £636.00 Our Price:
£445.20
Model: EVMS3 4N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 29.5 m SKU: 112-446 RRP: £666.00 Our Price:
£466.20
Model: EVMS3 5N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 36.9 m SKU: 112-447 RRP: £683.00 Our Price:
£478.10
Model: EVMS3 6N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 44.2 m SKU: 112-448 RRP: £708.00 Our Price:
£495.60
Model: EVMS3 7N5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 51.5 m SKU: 112-449 RRP: £778.00 Our Price:
£544.60
Model: EVMS3 8N5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 59 m SKU: 112-450 RRP: £810.00 Our Price:
£567.00
Model: EVMS3 9N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 66.5 m SKU: 112-451 RRP: £909.00 Our Price:
£636.30
Model: EVMS3 10N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 73.5 m SKU: 112-452 RRP: £932.00 Our Price:
£652.40
Model: EVMS3 11N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 81 m SKU: 112-453 RRP: £983.00 Our Price:
£688.10
Model: EVMS3 12N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 88.5 m SKU: 112-454 RRP: £1,021.00 Our Price:
£714.70
Model: EVMS3 13N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 96 m SKU: 112-455 RRP: £1,199.00 Our Price:
£839.30
Model: EVMS3 14N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 103 m SKU: 112-456 RRP: £1,240.00 Our Price:
£868.00
Model: EVMS3 15N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 111 m SKU: 112-457 RRP: £1,254.00 Our Price:
£877.80
Model: EVMS3 16N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 118 m SKU: 112-458 RRP: £1,271.00 Our Price:
£889.70
Model: EVMS3 17N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 125 m SKU: 112-459 RRP: £1,319.00 Our Price:
£923.30
Model: EVMS3 19N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 140 m SKU: 112-460 RRP: £1,350.00 Our Price:
£945.00
Model: EVMS3 21N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 155 m SKU: 112-461 RRP: £1,381.00 Our Price:
£966.70
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

The models listed above have a Oval Flange (N), also available are: Round Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
