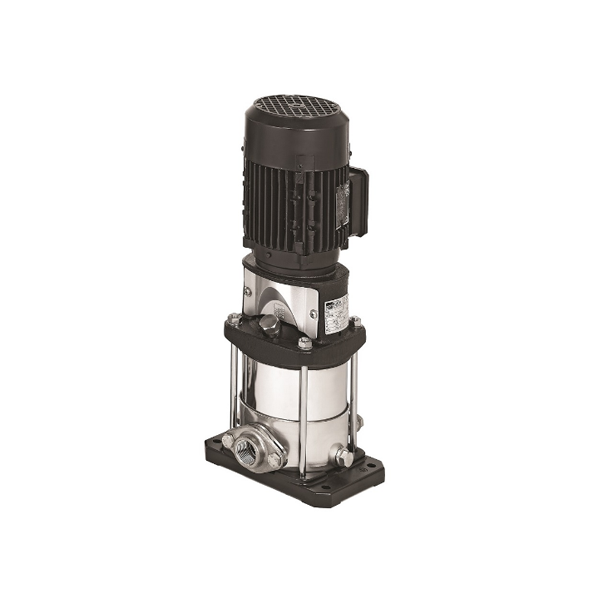

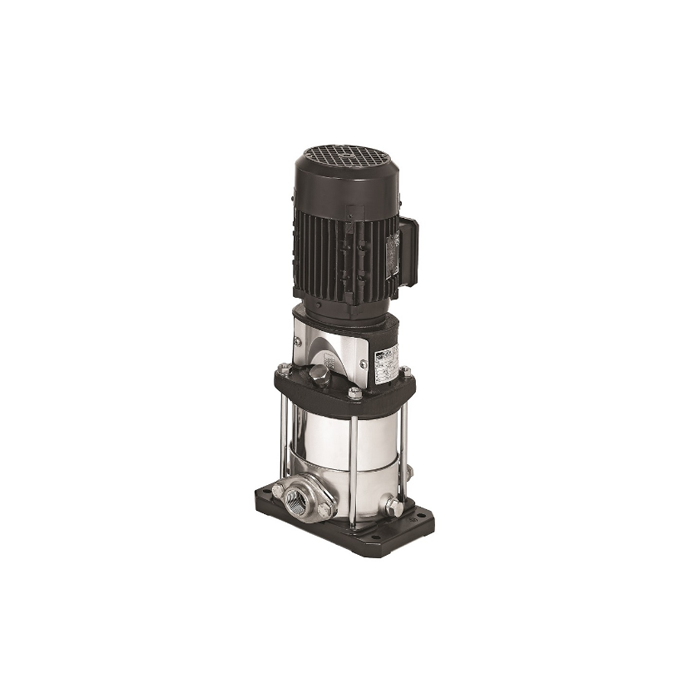

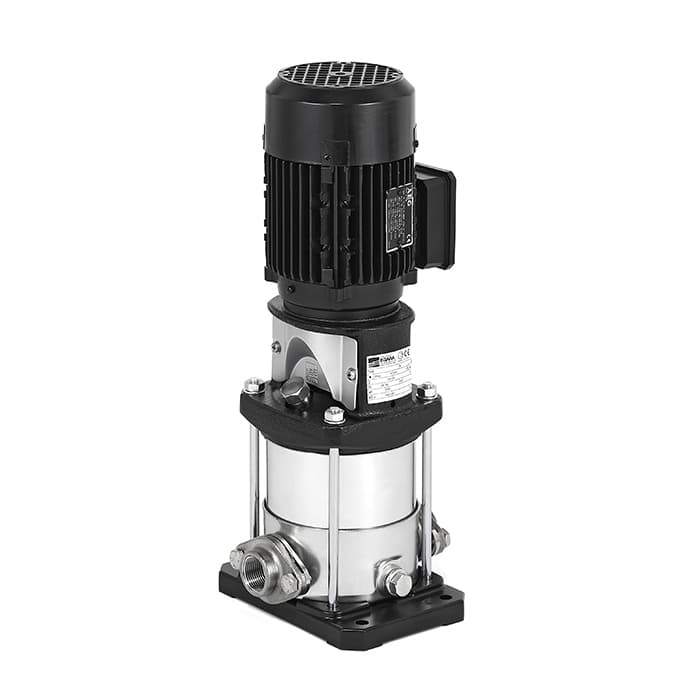

Ebara EVMS3 (N) 400V Vertical Multistage Pumps

Ebara EVMS3 (N) are 400V vertical multistage pumps with the lower flow (75l/min) of the Ebara EVMS (N) series. These robust and versatile Ebara water pumps are designed to transfer clean and coloured water in high-pressure applications and are suitable for a range of industrial and commercial uses. To further enhance the pump design, these multistage pumps come with innovative hydraulic features and energy-saving IE3 electric motors.

Starting at £767.76 £639.80

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS3 2N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 14.7 m SKU: 112-574 RRP: £914.00 Our Price:
£767.76 £639.80
Model: EVMS3 3N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 22.1 m SKU: 112-575 RRP: £958.00 Our Price:
£804.72 £670.60
Model: EVMS3 4N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 29.5 m SKU: 112-576 RRP: £998.00 Our Price:
£838.32 £698.60
Model: EVMS3 5N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 36.9 m SKU: 112-577 RRP: £1,029.00 Our Price:
£864.36 £720.30
Model: EVMS3 6N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 44.2 m SKU: 112-578 RRP: £1,060.00 Our Price:
£890.40 £742.00
Model: EVMS3 7N5/0.75 Voltage: 400V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 51.5 m SKU: 112-579 RRP: £1,116.00 Our Price:
£937.44 £781.20
Model: EVMS3 8N5/0.75 Voltage: 400V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 59 m SKU: 112-580 RRP: £1,213.00 Our Price:
£1,018.92 £849.10
Model: EVMS3 9N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 66.5 m SKU: 112-581 RRP: £1,295.00 Our Price:
£1,087.80 £906.50
Model: EVMS3 10N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 73.5 m SKU: 112-582 RRP: £1,358.00 Our Price:
£1,140.72 £950.60
Model: EVMS3 11N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 81 m SKU: 112-583 RRP: £1,397.00 Our Price:
£1,173.48 £977.90
Model: EVMS3 12N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 88.5 m SKU: 112-584 RRP: £1,521.00 Our Price:
£1,277.64 £1,064.70
Model: EVMS3 13N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 96 m SKU: 112-585 RRP: £1,782.00 Our Price:
£1,496.88 £1,247.40
Model: EVMS3 14N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 103 m SKU: 112-586 RRP: £1,782.00 Our Price:
£1,496.88 £1,247.40
Model: EVMS3 15N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 111 m SKU: 112-587 RRP: £1,845.00 Our Price:
£1,549.80 £1,291.50
Model: EVMS3 16N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 118 m SKU: 112-588 RRP: £1,845.00 Our Price:
£1,549.80 £1,291.50
Model: EVMS3 17N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 125 m SKU: 112-589 RRP: £1,896.00 Our Price:
£1,592.64 £1,327.20
Model: EVMS3 19N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 140 m SKU: 112-590 RRP: £1,924.00 Our Price:
£1,616.16 £1,346.80
Model: EVMS3 21N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1" Outlet: 1" Maxflow: 75 l/min Maxhead: 155 m SKU: 112-591 RRP: £1,994.00 Our Price:
£1,674.96 £1,395.80

Ebara EVMS3 (N) vertical multistage pumps are the lower flow (75l/min) models of the Ebara EVMS (N) series, designed for transferring clean and clouded water, where there is access to 400V power. The Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards. These multistage centrifugal pumps are versatile pumping solutions used for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting.

The beauty of these multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump without any modifications. In addition, Ebara EVMS vertical multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

The Ebara EVMS (N) series of multistage water pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.



WRAS Approved





Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
