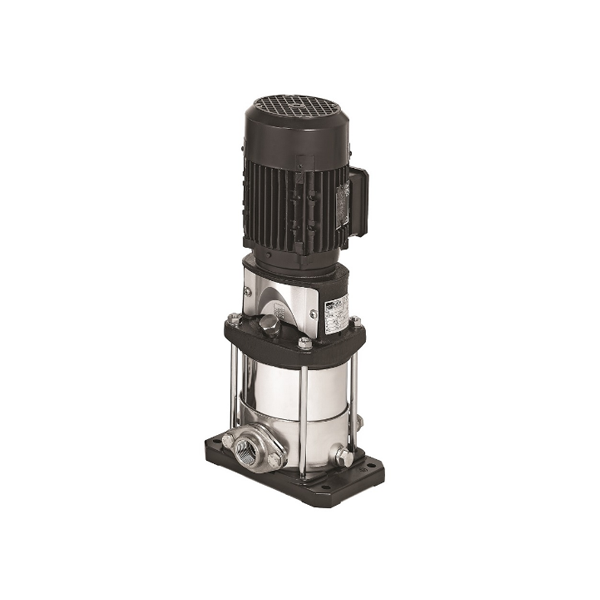

Ebara EVMS1 (N) 400V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS1 2N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 11.9 m SKU: 112-530 RRP: £582.00 Our Price:
£407.40
Model: EVMS1 3N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 17.9 m SKU: 112-531 RRP: £594.00 Our Price:
£415.80
Model: EVMS1 4N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 23.8 m SKU: 112-532 RRP: £609.00 Our Price:
£426.30
Model: EVMS1 5N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 30 m SKU: 112-533 RRP: £632.00 Our Price:
£442.40
Model: EVMS1 6N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 35.8 m SKU: 112-534 RRP: £653.00 Our Price:
£457.10
Model: EVMS1 7N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 41.5 m SKU: 112-535 RRP: £671.00 Our Price:
£469.70
Model: EVMS1 8N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 47.5 m SKU: 112-536 RRP: £680.00 Our Price:
£476.00
Model: EVMS1 9N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 53.5 m SKU: 112-537 RRP: £716.00 Our Price:
£501.20
Model: EVMS1 10N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 59.6 m SKU: 112-538 RRP: £725.00 Our Price:
£507.50
Model: EVMS1 11N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 65.5 m SKU: 112-539 RRP: £747.00 Our Price:
£522.90
Model: EVMS1 12N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 71.5 m SKU: 112-540 RRP: £782.00 Our Price:
£547.40
Model: EVMS1 13N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 77.5 m SKU: 112-541 RRP: £810.00 Our Price:
£567.00
Model: EVMS1 14N5/0.75 Voltage: 400V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 83.5 m SKU: 112-542 RRP: £847.00 Our Price:
£592.90
Model: EVMS1 16N5/0.75 Voltage: 400V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 95.5 m SKU: 112-543 RRP: £911.00 Our Price:
£637.70
Model: EVMS1 18N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 107 m SKU: 112-544 RRP: £967.00 Our Price:
£676.90
Model: EVMS1 20N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 119 m SKU: 112-545 RRP: £1,000.00 Our Price:
£700.00
Model: EVMS1 22N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 131 m SKU: 112-546 RRP: £1,033.00 Our Price:
£723.10
Model: EVMS1 24N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 143 m SKU: 112-547 RRP: £1,065.00 Our Price:
£745.50
Model: EVMS1 26N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 155 m SKU: 112-548 RRP: £1,098.00 Our Price:
£768.60
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

The models listed above have a Oval Flange (N), also available are: Round Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
