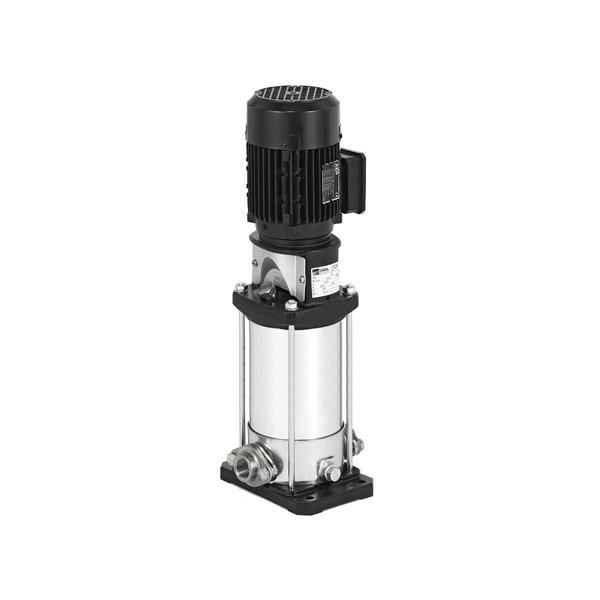

Ebara EVMS5 (N) 400V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS5 2N5/0.37 Voltage: 400V Motor: 0.37 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 19 m SKU: 112-617 RRP: £654.00 Our Price:
£457.80
Model: EVMS5 3N5/0.55 Voltage: 400V Motor: 0.55 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 28.4 m SKU: 112-618 RRP: £797.00 Our Price:
£557.90
Model: EVMS5 4N5/0.75 Voltage: 400V Motor: 0.75 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 37.9 m SKU: 112-619 RRP: £849.00 Our Price:
£594.30
Model: EVMS5 5N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 47.5 m SKU: 112-620 RRP: £880.00 Our Price:
£616.00
Model: EVMS5 6N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 57 m SKU: 112-621 RRP: £1,009.00 Our Price:
£706.30
Model: EVMS5 7N5/1.5 Voltage: 400V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 66.5 m SKU: 112-622 RRP: £1,049.00 Our Price:
£734.30
Model: EVMS5 8N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 76 m SKU: 112-623 RRP: £1,148.00 Our Price:
£803.60
Model: EVMS5 9N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 85.5 m SKU: 112-624 RRP: £1,224.00 Our Price:
£856.80
Model: EVMS5 10N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 95 m SKU: 112-625 RRP: £1,252.00 Our Price:
£876.40
Model: EVMS5 11N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 104 m SKU: 112-626 RRP: £1,284.00 Our Price:
£898.80
Model: EVMS5 12N5/3 Voltage: 400V Motor: 3 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 114 m SKU: 112-627 RRP: £1,393.00 Our Price:
£975.10
Model: EVMS5 13N5/3 Voltage: 400V Motor: 3 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 123 m SKU: 112-628 RRP: £1,429.00 Our Price:
£1,000.30
Model: EVMS5 14N5/3 Voltage: 400V Motor: 3 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 133 m SKU: 112-629 RRP: £1,466.00 Our Price:
£1,026.20
Model: EVMS5 15N5/3 Voltage: 400V Motor: 3 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 142 m SKU: 112-630 RRP: £1,527.00 Our Price:
£1,068.90
Model: EVMS5 17N5/4 Voltage: 400V Motor: 4 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 161 m SKU: 112-631 RRP: £1,665.00 Our Price:
£1,165.50
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

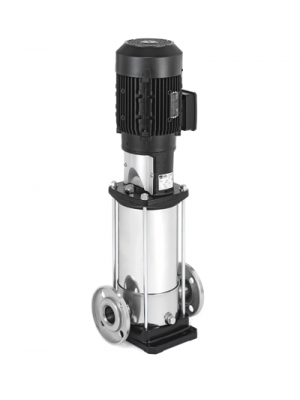

The models listed above have a Oval Flange (N), also available are: Round Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
