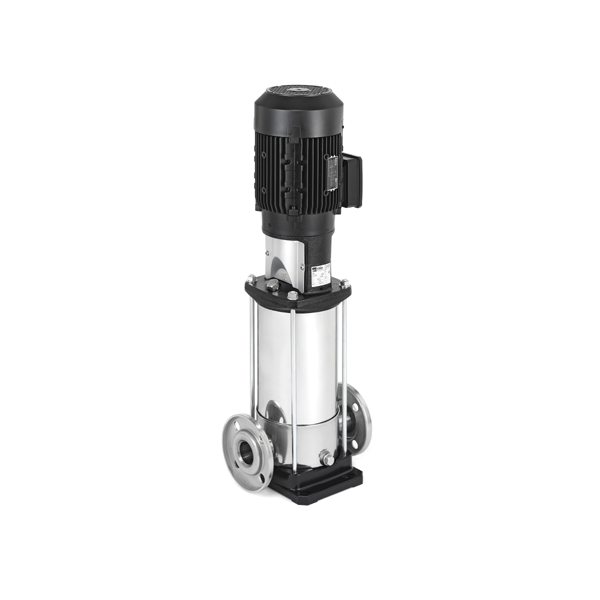

Ebara EVMS5 (F) 230V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS5 2F5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 19 m SKU: 112-492 RRP: £672.00 Our Price:
£470.40
Model: EVMS5 3F5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 28.4 m SKU: 112-493 RRP: £814.00 Our Price:
£569.80
Model: EVMS5 4F5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 37.9 m SKU: 112-494 RRP: £865.00 Our Price:
£605.50
Model: EVMS5 5F5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 47.5 m SKU: 112-495 RRP: £896.00 Our Price:
£627.20
Model: EVMS5 6F5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 57 m SKU: 112-496 RRP: £1,026.00 Our Price:
£718.20
Model: EVMS5 7F5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 66.5 m SKU: 112-497 RRP: £1,067.00 Our Price:
£746.90
Model: EVMS5 8F5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 76 m SKU: 112-498 RRP: £1,166.00 Our Price:
£816.20
Model: EVMS5 9F5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 85.5 m SKU: 112-499 RRP: £1,242.00 Our Price:
£869.40
Model: EVMS5 10F5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 95 m SKU: 112-500 RRP: £1,270.00 Our Price:
£889.00
Model: EVMS5 11F5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 104 m SKU: 112-501 RRP: £1,301.00 Our Price:
£910.70
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

The models listed above have a Round Flange (F), also available are: Oval Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
