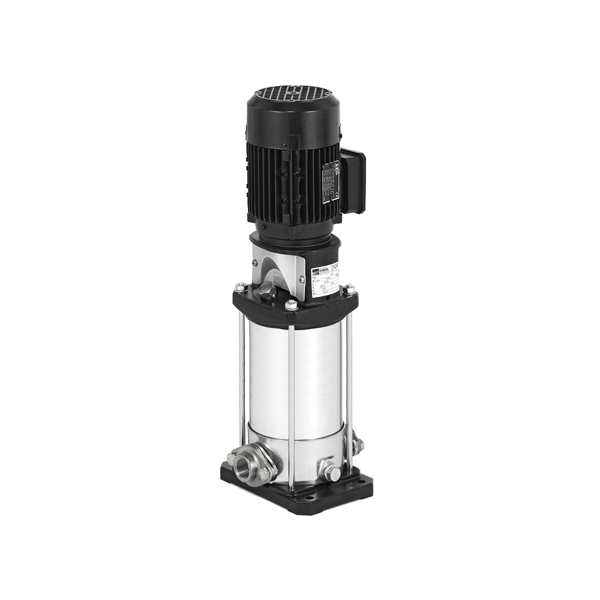

Ebara EVMS5 (N) 230V Vertical Multistage Pumps

Ebara EVMS (N) are vertical, multistage pumps designed to transfer clean and coloured water in high-pressure applications. Suitable for a range of industrial and commercial uses, these robust and versatile Ebara water pumps come with innovative hydraulic features and energy-saving IE3 electric motors.

Starting at £822.36 £685.30

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS5 2N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 19 m SKU: 112-482 RRP: £979.00 Our Price:
£822.36 £685.30
Model: EVMS5 3N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 28.4 m SKU: 112-483 RRP: £1,185.00 Our Price:
£995.40 £829.50
Model: EVMS5 4N5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 37.9 m SKU: 112-484 RRP: £1,209.00 Our Price:
£1,015.56 £846.30
Model: EVMS5 5N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 47.5 m SKU: 112-485 RRP: £1,259.00 Our Price:
£1,057.56 £881.30
Model: EVMS5 6N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 57 m SKU: 112-486 RRP: £1,374.00 Our Price:
£1,154.16 £961.80
Model: EVMS5 7N5/1.5M Voltage: 230V Motor: 1.5 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 66.5 m SKU: 112-487 RRP: £1,551.00 Our Price:
£1,302.84 £1,085.70
Model: EVMS5 8N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 76 m SKU: 112-488 RRP: £1,693.00 Our Price:
£1,422.12 £1,185.10
Model: EVMS5 9N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 85.5 m SKU: 112-489 RRP: £1,736.00 Our Price:
£1,458.24 £1,215.20
Model: EVMS5 10N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 95 m SKU: 112-490 RRP: £1,847.00 Our Price:
£1,551.48 £1,292.90
Model: EVMS5 11N5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 1-1/4" Outlet: 1-1/4" Maxflow: 130 l/min Maxhead: 104 m SKU: 112-491 RRP: £1,895.00 Our Price:
£1,591.80 £1,326.50

Ebara EVMS (N) vertical multistage pumps are designed for transferring clean and clouded water. The Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards. These multistage centrifugal pumps are versatile pumping solutions used for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting.

The beauty of these multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump without any modifications. In addition, Ebara EVMS multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

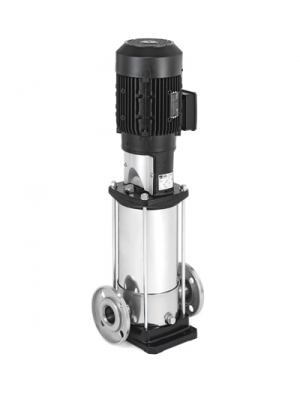

The Ebara EVMS (N) series of multistage pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.



WRAS Approved


Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
