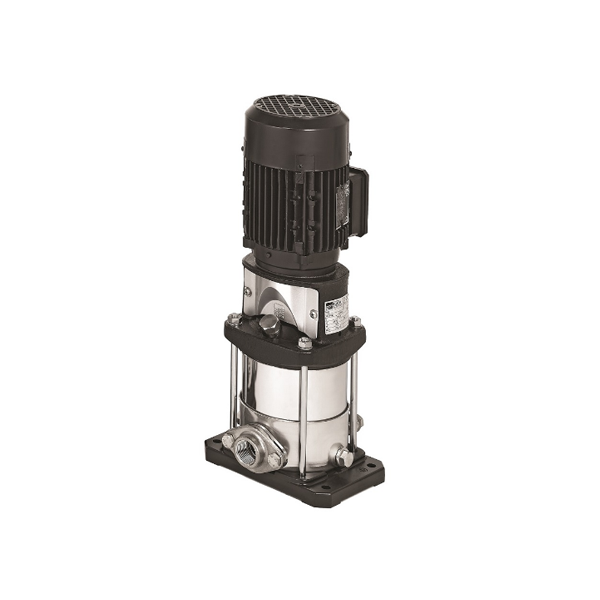

Ebara EVMS1 (N) 230V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS1 2N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 11.9 m SKU: 112-400 RRP: £582.00 Our Price:
£407.40
Model: EVMS1 3N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 17.9 m SKU: 112-401 RRP: £594.00 Our Price:
£415.80
Model: EVMS1 4N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 23.8 m SKU: 112-402 RRP: £609.00 Our Price:
£426.30
Model: EVMS1 5N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 30 m SKU: 112-403 RRP: £632.00 Our Price:
£442.40
Model: EVMS1 6N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 35.8 m SKU: 112-404 RRP: £653.00 Our Price:
£457.10
Model: EVMS1 7N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 41.5 m SKU: 112-405 RRP: £671.00 Our Price:
£469.70
Model: EVMS1 8N5/0.37M Voltage: 230V Motor: 0.37 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 47.5 m SKU: 112-406 RRP: £680.00 Our Price:
£476.00
Model: EVMS1 9N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 53.5 m SKU: 112-407 RRP: £716.00 Our Price:
£501.20
Model: EVMS1 10N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 59.6 m SKU: 112-408 RRP: £725.00 Our Price:
£507.50
Model: EVMS1 11N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 65.5 m SKU: 112-409 RRP: £747.00 Our Price:
£522.90
Model: EVMS1 12N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 71.5 m SKU: 112-410 RRP: £782.00 Our Price:
£547.40
Model: EVMS1 13N5/0.55M Voltage: 230V Motor: 0.55 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 77.5 m SKU: 112-411 RRP: £810.00 Our Price:
£567.00
Model: EVMS1 14N5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 83.5 m SKU: 112-412 RRP: £847.00 Our Price:
£592.90
Model: EVMS1 16N5/0.75M Voltage: 230V Motor: 0.75 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 95.5 m SKU: 112-413 RRP: £911.00 Our Price:
£637.70
Model: EVMS1 18N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 107 m SKU: 112-414 RRP: £967.00 Our Price:
£676.90
Model: EVMS1 20N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 119 m SKU: 112-415 RRP: £1,000.00 Our Price:
£700.00
Model: EVMS1 22N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 131 m SKU: 112-416 RRP: £1,033.00 Our Price:
£723.10
Model: EVMS1 24N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 143 m SKU: 112-417 RRP: £1,065.00 Our Price:
£745.50
Model: EVMS1 26N5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 1" Outlet: 1" Maxflow: 40 l/min Maxhead: 155 m SKU: 112-418 RRP: £1,098.00 Our Price:
£768.60
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

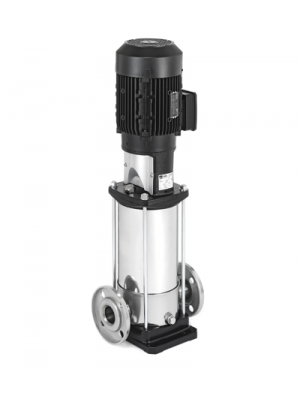

The models listed above have a Oval Flange (N), also available are: Round Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
