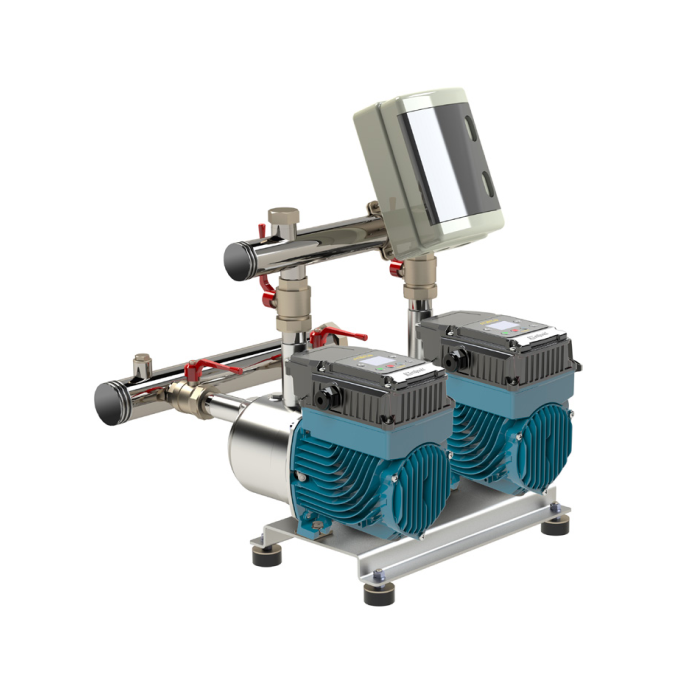

Calpeda Mèta Twin Pump Water Pressure Booster Sets

The Calpeda Mèta Twin Pump water pressure booster set is a complete, plug-and-play solution for boosting water pressure in larger water supply systems. Factory assembled and ready to install, the twin pump set requires no additional components, making installation quick and straightforward while providing reliable, constant water pressure.

The unit incorporates two self priming Calpeda Mèta pumps, each fitted with a high efficiency fanless motor, integrated variable speed drive (frequency inverter), Bluetooth-enabled controller, built-in pressure vessel, discharge pressure sensor and non-return valve on the suction side. Together, the twin pumps automatically respond to changes in demand, maintaining consistent system pressure while optimising energy consumption.

The Calpeda Mèta twin pump booster set offers the highest performance within the Calpeda Mèta pump range. It is suitable for larger water supply applications, particularly where constant pressure is required i.e. Shower blocks, or where there are large fluctuations in demand i.e. Hotels, housing estates, factories, farms and so on. For lower flow rate requirements, see the Mèta single pump pressure boosters.
It's 'plug and play' design means that installation is straight forward and the pressure boosting pump is easy to inspect and maintain thereafter.

The integrated variable speed drives continuously adjust pump speed to match demand, ensuring a reliable water supply while reducing energy consumption. Both pumps utilise Calpeda's latest fanless motor technology, providing quieter operation, improved efficiency and reduced maintenance requirements.

The integrated Bluetooth controllers enable simple monitoring and configuration of the booster set, making commissioning and ongoing system management even easier.

The Calpeda Mèta self priming, pressure boosting pump has some built-in protective features. If the water supply fails during operation, the booster pump automatically shuts down to protect against dry running, one of the biggest causes of water pump failure.

Specifications
►Maximum liquid temperature: 35°C
►Maximum operating pressure: 4.7 bar
►Insulation class: F
►Energy saving: 450Wh
►Energy efficiency index: EEI 0.42

Advantages
►Constant pressure regardless of demand
►Up to 450Wh less energy consumption compared conventional units
►Very quiet operation
►Built-in pressure vessel
►Dry run protection with auto re-start
►Detects the presence of air in the pump casing
►Overload control and overheating motor control
►Power supply control
►Detects small water leaks in the system

As a Calpeda Pump supplier, if you are unsure on the pressure boosting pump model you require we can help. Please contact our technical sales team today on 01777 871100 for free, expert advice.
