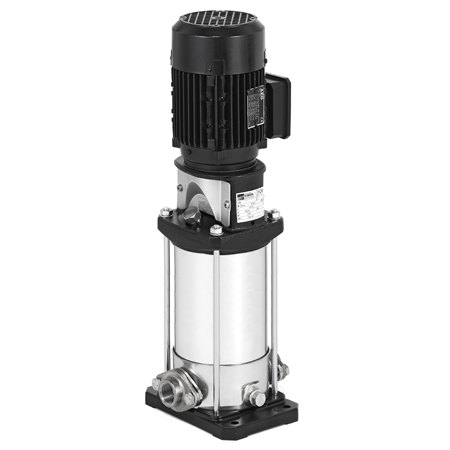

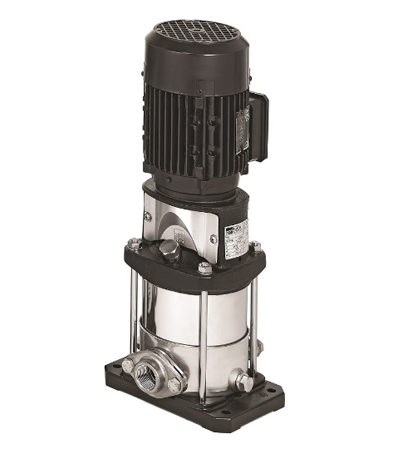

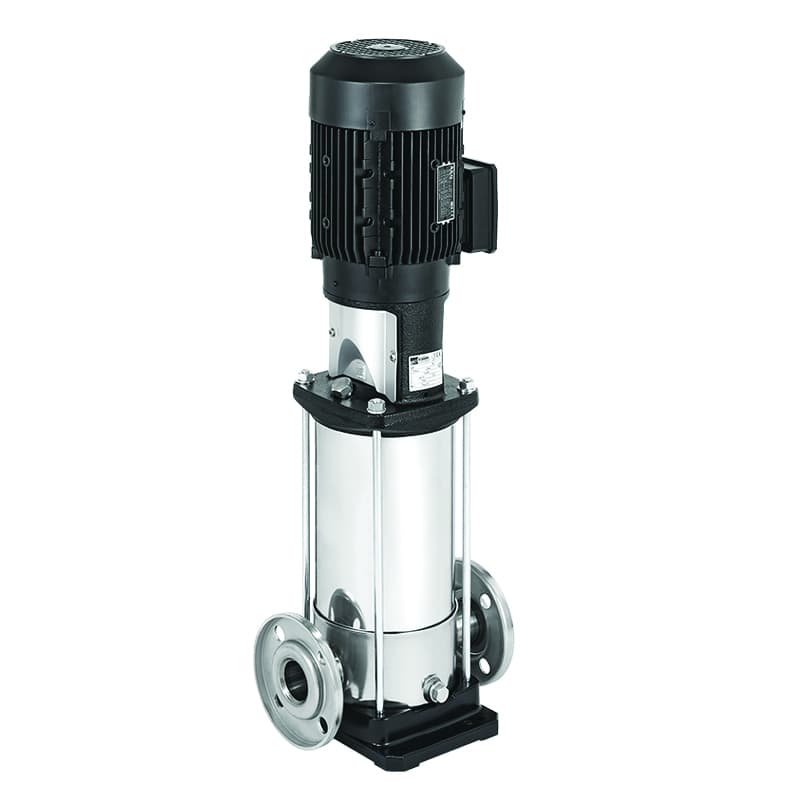

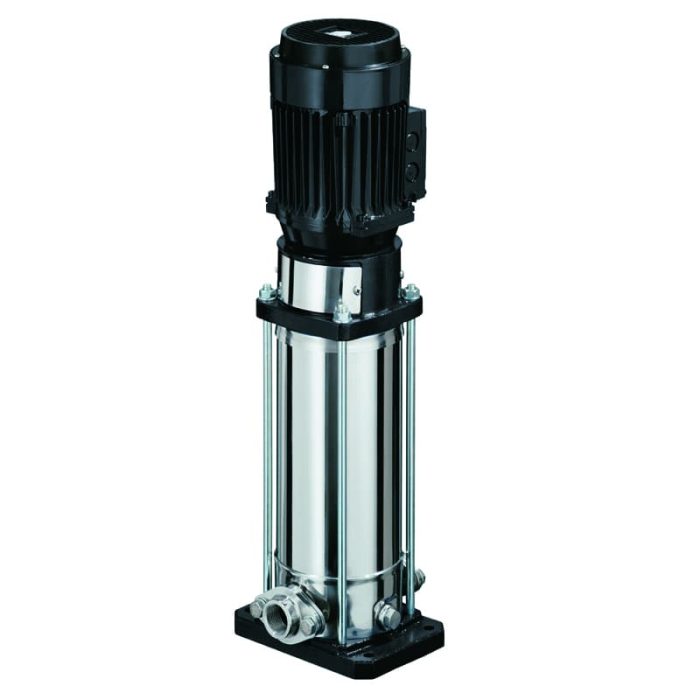

Ebara EVMS10 (N) 230V Vertical Multistage Pumps

Ebara EVMS10 (N) 230V Vertical Multistage Pumps

Free Delivery2 Year GuaranteeBest Price GuaranteeFree Expert Advice

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependant on your application requirements.

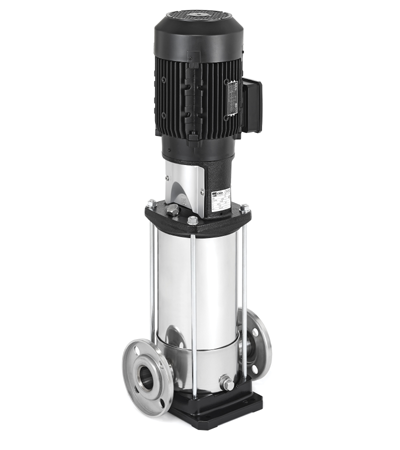

The models listed below have an Oval Flange (N), also available are: Round Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications Materials
►Maximum liquid temperature: 120°C ►Pump body: AISI 304 Stainless steel
►WRAS Approved ►Impeller: AISI 304 Stainless steel
►IP55 Protection ►Mechanical seal: SiC/Carbon EPDM*
►Insulation class: F

*standard version - Other seal materials available upon request

WRAS Approved Product

Reviews powered by

Delivery Costs

Delivery Map


Zone 1 England, Wales & Southern Scotland Under £100 Over £100
Standard 2/3 working days


Express Next working day


Premium Next working day (before 13.00)


Zone 2 Scottish Highlands & Islands, Northern Ireland, Isle of Man, Scilly & Channel Isles Under £100 Over £100
Standard 2/3 working days


Zone 3 Republic of Ireland Under £100 Over £100
Standard 3/5 working days




Orders must be placed before 14.00 for next day and premium next day delivery.


Exporting Internationally

We offer a first class worldwide export service. Please contact us here for a price.
Model Voltage Motor P2 Inlet Outlet Max. Flow Max. Head SKU Price ex-VAT Qty
EVMS10 2N5/0.75M 230V 0.75 kW 1-1/2" 1-1/2" 250 l/min 21.8 m 112-502 £659.57
EVMS10 3N5/1.5M 230V 1.5 kW 1-1/2" 1-1/2" 250 l/min 32.7 m 112-503 £761.49
EVMS10 4N5/2.2M 230V 2.2 kW 1-1/2" 1-1/2" 250 l/min 43.6 m 112-504 £934.75
EVMS10 5N5/2.2M 230V 2.2 kW 1-1/2" 1-1/2" 250 l/min 54.5 m 112-505 £983.53
EVMS10 6N5/2.2M 230V 2.2 kW 1-1/2" 1-1/2" 250 l/min 65.5 m 112-506 £1,062.88
