Calpeda Mèta Water Pressure Booster Pump

Calpeda Mèta water pressure booster system is a compact 'plug and play' pumping solution for water pressurisation. Calpeda Mèta booster pump is a ready to use 'plug and play' unit that requires no additional components for it's installation. The pumping unit has a self priming pump with a highly efficient asynchronous motor, built in frequency converter and pressure vessel, a pressure sensor on the discharge outlet, and a non return valve on the inlet suction side.

Mèta water pressure booster set by Calpeda is suitable for increasing water pressure to showers, taps, garden taps, appliances and for irrigation systems using rainwater harvesting. Dependant on your requirements, the Mèta-S is best suited to these types of applications within a clean water, domestic setting, whereas the Mèta-L with increased flow rate is suitable for clean water domestic, commercial and agricultural settings.

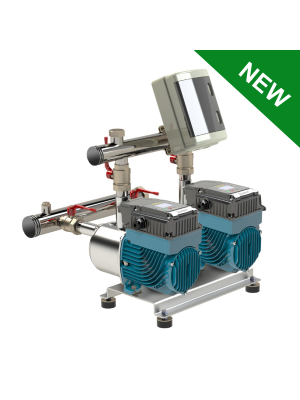

For larger flow rate requirements, see the Mèta twin pump pressure boosters.

The Mèta pressure boosters 'plug and play' design means that installation is straight forward and the pressure boosting pump is easy to inspect and maintain thereafter.

The key advantages of this water booster pumps built-in variable speed drive is a constant, reliable water pressure based on demand. As a result of the variable speed drive and asynchronous motor, this Calpeda booster pump has a high energy efficiency rating - EEI 0.42 and is much more efficient than traditional water pressure booster solutions.

The Calpeda Mèta self priming, pressure boosting pump has some built-in protective features. If the water supply fails during operation, the booster pump automatically shuts down to protect against dry running, one of the biggest causes of water pump failure.

Whilst the Calpeda Mèta water boosting pump is a new product to the Whisper Pumps water pump catalogue; we have tried and tested it in our workshop and can vouch for it's quality pump design and reliability.

Specifications
►Maximum liquid temperature: 35°C
►Maximum operating pressure: 4.7 bar
►Insulation class: F
►Energy saving: 450Wh
►Energy efficiency index: EEI 0.42

Advantages
►Constant pressure regardless of demand
►Up to 450Wh less energy consumption compared conventional units
►Very quiet operation
►Built-in pressure vessel
►Dry run protection with auto re-start
►Detects the presence of air in the pump casing
►Overload control and overheating motor control
►Power supply control
►Detects small water leaks in the system

As a Calpeda Pump supplier, if you are unsure on the pressure boosting pump model you require we can help. Please contact our technical sales team today on 01777 871100 for free, expert advice.
