Franklin Electric Submersible Pump Motors

Our best-selling 4” Franklin Electric submersible motors are highly efficient, dependable motors. These Franklin Electric motors will fit most 4” borehole pumps thanks to their standard NEMA coupling.

Starting at £421.68 £351.40

Grouped product items
Model Voltage Current Motor SKU RRP Our Price (ex VAT)
Model: 0.37 kW Motor 254 815 6700L Voltage: 230V Current: 3.3A - 16µF Motor: 0.37 kW SKU: 3323-001 RRP: £529.00 Our Price:
£444.36 £370.30
Model: 0.55 kW Motor 254 817 6700L Voltage: 230V Current: 4.3A - 20µF Motor: 0.55 kW SKU: 3323-002 RRP: £546.00 Our Price:
£458.64 £382.20
Model: 0.75 kW Motor 254 818 6700L Voltage: 230V Current: 5.7A - 35µF Motor: 0.75 kW SKU: 3323-003 RRP: £597.00 Our Price:
£501.48 £417.90
Model: 1.10 kW Motor 254 819 6700L Voltage: 230V Current: 8.4A - 40µF Motor: 1.10 kW SKU: 3323-004 RRP: £688.00 Our Price:
£577.92 £481.60
Model: 1.50 kW Motor 254 820 6700L Voltage: 230V Current: 10.7A - 50µF Motor: 1.50 kW SKU: 3323-005 RRP: £856.00 Our Price:
£719.04 £599.20
Model: 2.20 kW Motor 254 821 6700L Voltage: 230V Current: 14.7A - 70µF Motor: 2.20 kW SKU: 3323-006 RRP: £1,044.00 Our Price:
£876.96 £730.80
Model: 0.37 kW Motor 234 761 6700L Voltage: 400V Current: 1.3A Motor: 0.37 kW SKU: 3323-007 RRP: £502.00 Our Price:
£421.68 £351.40
Model: 0.55 kW Motor 234 762 6700L Voltage: 400V Current: 1.5A Motor: 0.55 kW SKU: 3323-008 RRP: £538.00 Our Price:
£451.92 £376.60
Model: 0.75 kW Motor 234 763 6700L Voltage: 400V Current: 2A Motor: 0.75 kW SKU: 3323-009 RRP: £577.00 Our Price:
£484.68 £403.90
Model: 1.10 kW Motor 234 724 6700L Voltage: 400V Current: 2.9A Motor: 1.10 kW SKU: 3323-010 RRP: £691.00 Our Price:
£580.44 £483.70
Model: 1.50 kW Motor 234 725 6700L Voltage: 400V Current: 3.8A Motor: 1.50 kW SKU: 3323-011 RRP: £801.00 Our Price:
£672.84 £560.70
Model: 2.20 kW Motor 234 726 6700L Voltage: 400V Current: 5.5A Motor: 2.20 kW SKU: 3323-012 RRP: £931.00 Our Price:
£782.04 £651.70
Model: 3.00 kW Motor 234 764 6700L Voltage: 400V Current: 7.6A Motor: 3.00 kW SKU: 3323-013 RRP: £1,151.00 Our Price:
£966.84 £805.70
Model: 4.00 kW Motor 234 765 3421L Voltage: 400V Current: 9.8A Motor: 4.00 kW SKU: 3323-014 RRP: £1,512.00 Our Price:
£1,270.08 £1,058.40
Model: 5.50 kW Motor 234 728 3421L Voltage: 400V Current: 13A Motor: 5.50 kW SKU: 3323-015 RRP: £1,730.00 Our Price:
£1,453.20 £1,211.00

The 4” Franklin Electric submersible motors are one of the best selling on the entire market thanks to their highly efficient, dependable design. These Franklin Electric motors will fit most 4” borehole pumps thanks to their standard NEMA coupling, allowing you to replace just the motor or just the bare shaft pump.

Constructed from graded corrosion resistant stainless steel and fitted with a water lubricated radial and thrust bearings, these borehole pump motors offer extremely reliable, maintenance free operation. Franklin Electric motors also boast extremely efficient electrical operation keeping your running costs down and have a protective hermetically sealed stator and anti-track, self-healing stator resin to prevent motor burn out.

The 4" stainless steel borehole motor has undergone a recent upgrade to further improve it and adapt to market conditions. The stator now has a solid AISI 304 stainless steel end ring for better corrosion resistance and robustness. Cable connection improvements have also been implemented for better handling (see datasheet for photos).

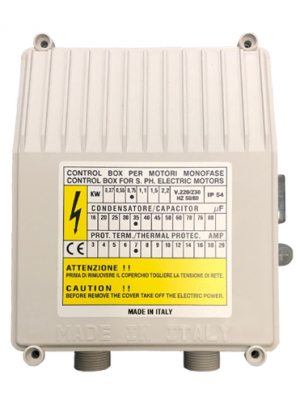

Single phase 230V motors operate with a permanent split capacitor (PSC) and overload box. You can purchase the capacitor/overload box here.

As an experienced borehole pump supplier, Whisper Pumps choose to offer Franklin Electric submersible motors as an option for customers to purchase alone for use with an existing borehole water pump, or to buy in conjunction with the motor-less options we offer.

Franklin Electric Motors Specifications:
►Hermetically sealed stator and anti-track, self-healing stator resin prevents motor burn out
►High efficiency electrical design and cooler winding temperature
►Removable “Water bloc” power lead connector for easy replacement
►Cable material meets drinking water regulations
►Suitable for use in water with increased salinity
►Corrosion-resistant stainless steel
►All motors pre-filled and 100% tested
►Non contaminating, water-filled design
►Standard NEMA coupling with metric studs and spline for all 4” borehole pumps
►1.5m power lead for connection to submersible drop cable
►Single phase (220-230V) and 3 Phase (380-400V) models
►Up to 5.50 kW available
►2 Year Guarantee

Please note: We also supply Franklin Electric motors in 6”, 8” and 10” for borehole water pumps of these sizes. Please contact us to enquire.


As a longstanding Franklin Electric Motor supplier, Whisper Pumps are highly experienced in all models. If you are unsure on the borehole pump motor you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
