Water Filter Housings

Water filter cartridge housings can be used individually or coupled together in a series with different cartridges to achieve a staged removal of impurities or in parallel to allow high flow filtration.
Grouped product items
Model Inlet Outlet SKU Our Price (ex VAT)
Model: 10" Standard Filter Housing Inlet: 1" Outlet: 1" SKU: 5569-008 Our Price:
£23.00
Model: 10" Big Filter Housing Inlet: 1" Outlet: 1" SKU: 5569-020 Our Price:
£45.00
Model: 20" Big Filter Housing Inlet: 1" Outlet: 1" SKU: 5569-023 Our Price:
£65.00
Water filter cartridge housings can be used individually or coupled together in a series with different cartridges to achieve a staged removal of impurities or in parallel to allow high flow filtration.

The housings are supplied empty, ready to accept our comprehensive range of filter cartridges to solve most water purity problems.

The head of the filter housing is equipped with a pressure relief valve which enables accumulated air to be released after cartridge replacement.

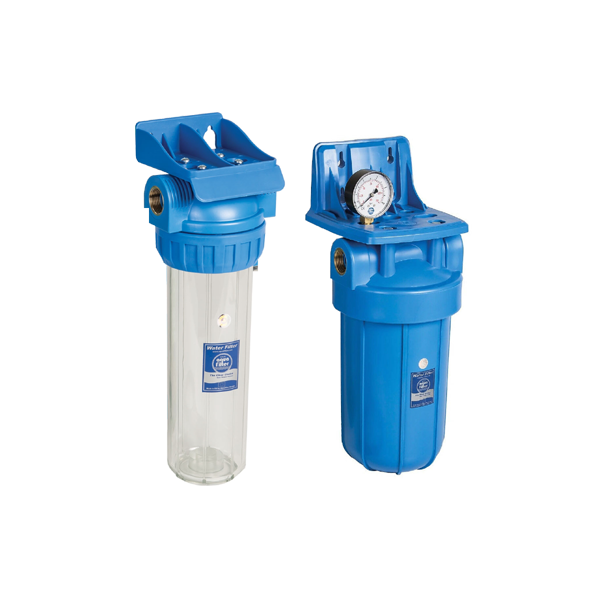

Standard filter housings are supplied with a spanner and wall bracket.

Big filter housings are supplied with a gauge, spanner, wall bracket and a bacteriostatic filter centralising ring.

Specifications
►Maximum temperature: 50°C
►Maximum working pressure: 8 bar

Materials
►Head: Polypropylene
►Sump: Polypropylene
►'O' ring: NBR

WRAS Approved
