Brass swing check valves suitable for horizontal mounting in dirty water and sewage applications.
chevron-down chevron-up
6 options available from £19.51
Description

View the full range:

Need help choosing? Send enquiry
Cancel

Options Available

Model: 1" Swing Check Valve SKU: 030-0250 RRP: £24.39
£19.51 £23.41
Loading...
Add to Basket
Model: 1-1/4" Swing Check Valve SKU: 030-0320 RRP: £38.22
£30.58 £36.70
Loading...
Add to Basket
Model: 1-1/2" Swing Check Valve SKU: 030-0400 RRP: £60.51
£48.41 £58.09
Loading...
Add to Basket
Model: 2" Swing Check Valve SKU: 030-0500 RRP: £81.84
£65.47 £78.56
Loading...
Add to Basket
Model: 3" Swing Check Valve SKU: 030-0800 RRP: £242.37
£193.90 £232.68
Loading...
Add to Basket
Model: 4" Swing Check Valve SKU: 030-0900 RRP: £388.89
£311.11 £373.33
Loading...
Add to Basket

Description

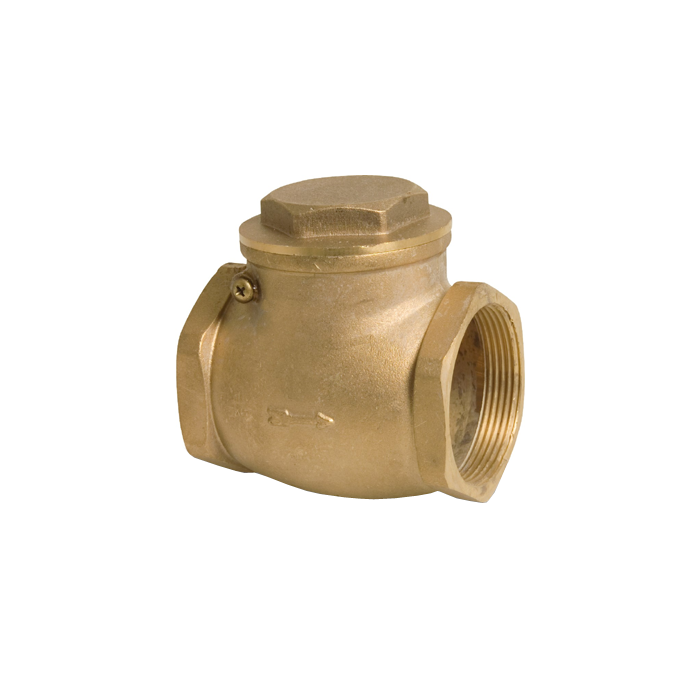

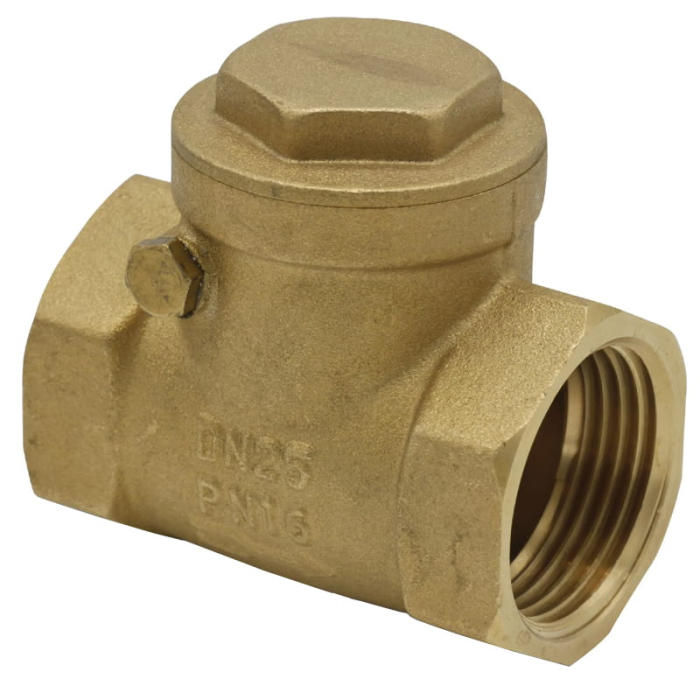

Brass swing check valves suitable for horizontal mounting in dirty water and sewage applications.

A swing check valve has a flap or disc of the same diameter as the pipe bore, which hangs down in the flow path. With flow in the forwards direction, the pressure of the fluid forces the disc to hinge upwards, allowing flow through the valve. Reverse flow will cause the disc to shut and stop the fluid going back down the pipe. In the absence of flow, the weight of the flap is responsible for the closure of the valve.



Specifications
►Maximum working pressure: 10 bar
►Maximum liquid temperature: 90°C

Materials
►Valve body: Brass
►Valve seat: EPDM
