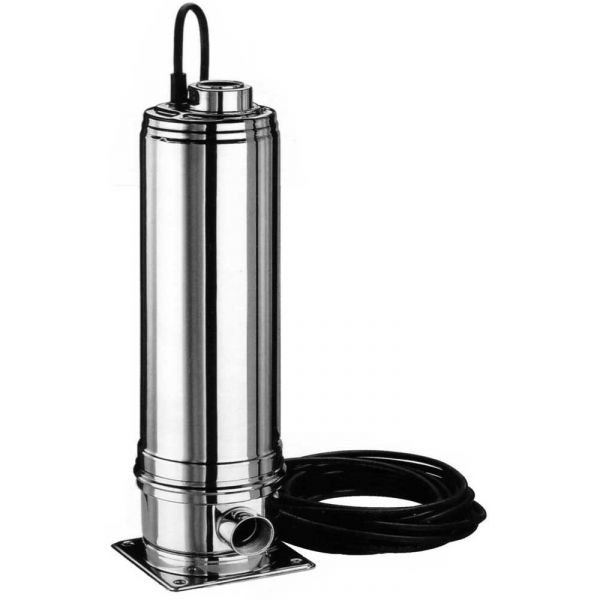

Ebara MULTIGO Submersible Pumps - 400V

Ebara MULTIGO multistage pumps are renowned for being low noise, reliable solutions that can be used both in surface and submerged installations. These high-quality electric submersible pumps are designed for pumping clean water and are ideal for domestic and commercial uses, including pressure boosting, flood pumping, water features and irrigation systems.
Grouped product items
Model Voltage Motor Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: MULTIGO 40/08 Voltage: 400V Motor: 0.60kW Maxflow: 80 l/min Maxhead: 44 m SKU: 112-007 RRP: £722.00 Our Price:
£606.48 £505.40
Model: MULTIGO 40/10 Voltage: 400V Motor: 0.75kW Maxflow: 80 l/min Maxhead: 55 m SKU: 112-008 RRP: £738.00 Our Price:
£619.92 £516.60
Model: MULTIGO 40/12 Voltage: 400V Motor: 0.90kW Maxflow: 80 l/min Maxhead: 61 m SKU: 112-009 RRP: £798.00 Our Price:
£670.32 £558.60
Model: MULTIGO 40/15 Voltage: 400V Motor: 1.10kW Maxflow: 80 l/min Maxhead: 76 m SKU: 112-010 RRP: £836.00 Our Price:
£702.24 £585.20
Model: MULTIGO 80/12 Voltage: 400V Motor: 0.90kW Maxflow: 120 l/min Maxhead: 46 m SKU: 112-011 RRP: £806.00 Our Price:
£677.04 £564.20
Model: MULTIGO 80/15 Voltage: 400V Motor: 1.10kW Maxflow: 120 l/min Maxhead: 58 m SKU: 112-012 RRP: £887.00 Our Price:
£745.08 £620.90
Model: MULTIGO 80/20 Voltage: 400V Motor: 1.50kW Maxflow: 120 l/min Maxhead: 74 m SKU: 112-013 RRP: £916.00 Our Price:
£769.44 £641.20

Ebara MULTIGO submersible pumps are vertical multistage pumps designed for transferring clean water. Ideal for domestic and commercial uses, including pressure boosting, flood pumping, water features and irrigation systems, the Ebara submersible pumps are versatile and reliable pumping solutions.

The beauty of these Ebara pumps is that the pump motor is cooled by pumped liquid which simultaneously reduces the noise and vibration levels as the liquid passes around the motor within a water jacket. This way, the cooling of the motor is guaranteed and allows the Ebara vertical multistage centrifugal pump to be used both on the surface and in the submerged installations. Renowned for being low noise, the MULTIGO submersible water pumps have a robust stainless steel design and polypropylene and polystyrene impeller reinforced with fibreglass to ensure pump durability. In addition, the Ebara submersible pumps are supplied with a double mechanical seal with an interposed chamber containing lubrication fluid to ensure long service life and reliability.

Upon request, Whisper Pumps can supply a special Floating Suction Kit, which is the ideal accessory for the Ebara MULTIGO multistage centrifugal pumps. The floating foot valve kit raises the water intake above sediment level and below the floating debris, therefore pulling clean water.

Specifications
►Maximum liquid temperature: 40°C
►Maximum working pressure: 10 bar
►Maximum suction lift: 8 Metres
►Power cable: 5 Metres

Materials
►Pump body: AISI 304 Stainless steel
►Impeller & Diffuser: Technopolymer
►Shaft seal: Carbon/Ceramic/NBR

Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the electric submersible pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
