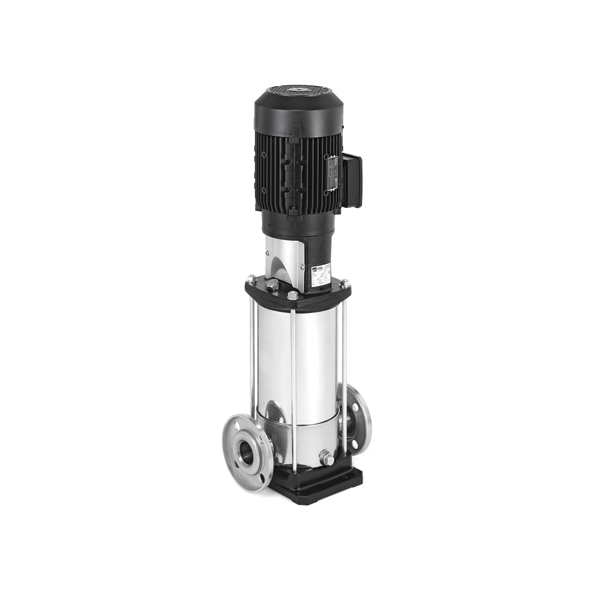

Ebara EVMS20 (F) 400V Vertical Multistage Pumps

The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors.

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS20 1F5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 16.8 m SKU: 112-719 RRP: £1,249.00 Our Price:
£874.30
Model: EVMS20 2F5/3 Voltage: 400V Motor: 3 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 33.7 m SKU: 112-720 RRP: £1,577.00 Our Price:
£1,103.90
Model: EVMS20 3F5/4 Voltage: 400V Motor: 4 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 50.5 m SKU: 112-721 RRP: £2,029.00 Our Price:
£1,420.30
Model: EVMS20 4F5/5.5 Voltage: 400V Motor: 5.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 67.4 m SKU: 112-722 RRP: £2,452.00 Our Price:
£1,716.40
Model: EVMS20 5F5/7.5 Voltage: 400V Motor: 7.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 84.2 m SKU: 112-723 RRP: £2,794.00 Our Price:
£1,955.80
Model: EVMS20 6F5/7.5 Voltage: 400V Motor: 7.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 101.1 m SKU: 112-724 RRP: £2,889.00 Our Price:
£2,022.30
Model: EVMS20 7F5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 117.9 m SKU: 112-725 RRP: £3,232.00 Our Price:
£2,262.40
Model: EVMS20 8F5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 134.7 m SKU: 112-726 RRP: £3,326.00 Our Price:
£2,328.20
Model: EVMS20 9F5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 151.6 m SKU: 112-727 RRP: £3,421.00 Our Price:
£2,394.70
Model: EVMS20 10F5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 168.4 m SKU: 112-728 RRP: £3,514.00 Our Price:
£2,459.80
Model: EVMS20 11F5/15 Voltage: 400V Motor: 15 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 185.3 m SKU: 112-729 RRP: £3,857.00 Our Price:
£2,699.90
Model: EVMS20 12F5/15 Voltage: 400V Motor: 15 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 202.1 m SKU: 112-730 RRP: £3,952.00 Our Price:
£2,766.40
Model: EVMS20 13F5/15 Voltage: 400V Motor: 15 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 219 m SKU: 112-731 RRP: £4,046.00 Our Price:
£2,832.20
Model: EVMS20 14F5/18.5 Voltage: 400V Motor: 18.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 235.8 m SKU: 112-732 RRP: £4,389.00 Our Price:
£3,072.30
Model: EVMS20 15F5/18.5 Voltage: 400V Motor: 18.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 252.6 m SKU: 112-733 RRP: £4,560.00 Our Price:
£3,192.00
Model: EVMS20 16F5/18.5 Voltage: 400V Motor: 18.5 kW Inlet: 2" Outlet: 2" Maxflow: 480 l/min Maxhead: 269.5 m SKU: 112-734 RRP: £4,732.00 Our Price:
£3,312.40
The EVMS is Ebara’s NEW range of vertical multistage pumps with innovative hydraulic features and energy saving IE3 electric motors. The EVMS range has the newly designed 'Shurricane' impeller for greater efficiency and increased service life. A cartridge type shaft seal makes replacement quick and easy (see video).

Suitable applications include: Pressure boosting, irrigation systems, water treatment plants, and heating/cooling systems.

The EVMS range is available in various pipe connections dependent on your application requirements.

The models listed above have a Round Flange (F), also available are: Oval Flange, Round Loose Flange & Plug-in Connection (Victaulic & Clamp).

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
