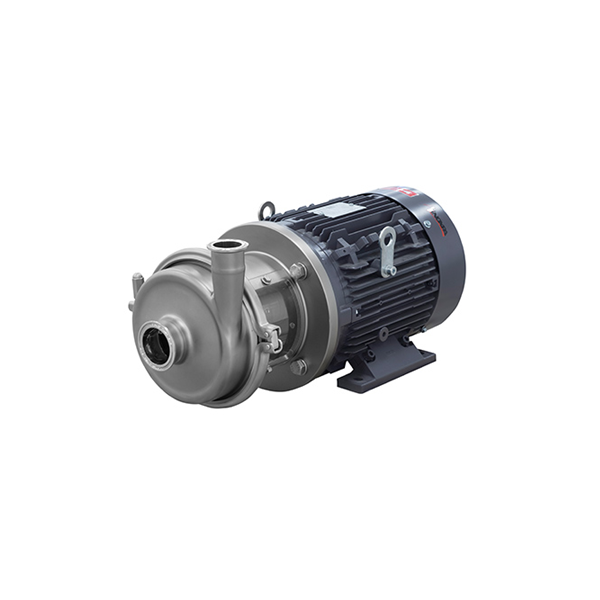

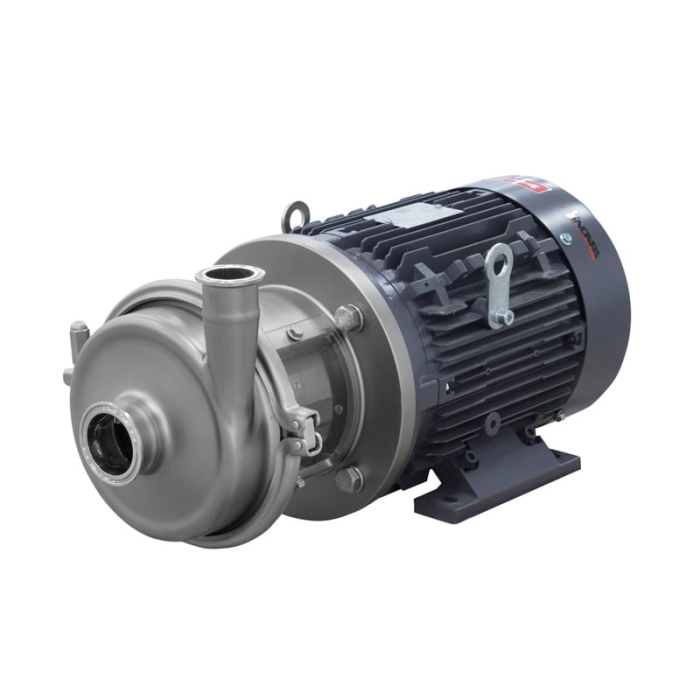

Inoxpa HYGINOX SEN Hygienic Centrifugal Pump

Inoxpa HYGINOX SEN hygienic pump is specifically designed for transferring consumable products within the brewing, dairy, beverage, pharmaceutical and cosmetic industries. This sanitary pump is made of cold-formed stainless steel and complies with the strictest hygienic requirements, and ensures reliable, long-lasting operation.

POA

Grouped product items
Model SKU Our Price (ex VAT)
Model: HYGINOX SEN Hygienic Pumps SKU: 000-0013 Our Price: Price on Application

The HYGINIX SEN Hygienic Centrifugal Pump by Inoxpa benefits from sanitary and cost-efficient design. Thanks to its hygienic design, this sanitary centrifugal pump is ideal for the brewing, dairy, beverage, pharmaceutical and cosmetic industries, where a hygienic pump is required to prevent contamination of the pumped fluid and ensure a safe transfer. This Inoxpa centrifugal pump is highly efficient, and it is recommended for CIP processes, making it the perfect pumping solution for applications requiring a hygienic and sanitary environment and handling consumable solutions. Made of cold-formed stainless steel to comply with the strictest hygienic requirements and ensure reliable, long-lasting operation, HYGINOX SEN stainless steel sanitary pump provides fast and efficient operation.

Inoxpa HYGINOX SEN Hygienic Centrifugal Pump is supplied with NEMA Premium Efficiency three-phase induction motor that has a robust design structure, small vibration and low noise. This sanitary pump comes with an internal single mechanical seal that has a hygienic design. As standard, the stationary part is in carbon, the rotary part is in silicon carbide, and the gaskets are in EPDM. However, this hygienic pump can be supplied with other materials compatible with pumped fluid when required.

Specifications
►Maximum flow rate: Up to 145 m³/h
►Maximum liquid temperature: 120°C (as standard, please specify if pumping anything at a higher temperature)
►Maximum operating pressure: 10 bar
► NEMA Premium Efficiency three-phase induction motor, C-face and foot mounted

Materials
►Parts in contact with media: AISI 316L stainless steel
►Gaskets: EPDM
►Mechanical seal: SiC/C/EPDM

Due to the complexity and quantity of Inoxpa HYGINOX SEN hygienic pump models available, we recommend that you call us on 01777 871100 to discuss your requirements with one of our technical engineers.
