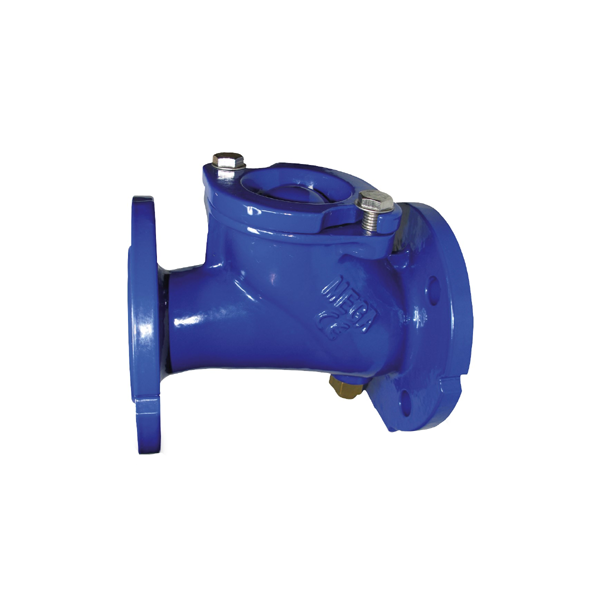

Ball Check Valves, With Lifting Device

Top quality, epoxy coated ball check valves with full flow passage. Suitable for sewage and wastewater applications.
Grouped product items
Model SKU Our Price (ex VAT)
Model: DN50 SKU: 479-310 Our Price:
£91.10
Model: DN65 SKU: 479-311 Our Price:
£109.00
Model: DN80 SKU: 479-312 Our Price:
£139.00
Model: DN100 SKU: 479-313 Our Price:
£183.00
Model: DN125 SKU: 479-314 Our Price:
£270.00
Model: DN150 SKU: 479-315 Our Price:
£336.00
Model: DN200 SKU: 479-316 Our Price:
£625.00
Model: DN250 SKU: 479-317 Our Price:
£1,079.00
Model: DN300 SKU: 479-318 Our Price:
£1,320.00
Top quality, epoxy coated ball check valves with full flow passage. Suitable for sewage and wastewater applications.

How it works
As fluid starts to flow, the ball moves out of the stream to allow full passage of solid material. When the flow stops, the ball returns under gravity and seals the inlet, preventing back flow. The ball rotates randomly during operation to prevent build up of deposits on the ball surface.



Specifications
►Maximum working pressure: 10 bar
►Maximum liquid temperature: 100°C
Materials
►Valve body: Cast iron GG 25
►Surface treatment: Epoxy coating
►Seal: NBR



DN Flange PCD Holes ∅ Hole
50 PN10/16 125 mm 4 18 mm
65 PN10/16 145 mm 4 18 mm
80 PN10/16 160 mm 8 18 mm
100 PN10/16 180 mm 8 18 mm
125 PN10/16 210 mm 8 18 mm
150 PN10/16 240 mm 8 23 mm
200 PN10 295 mm 8 23 mm
250 PN10 350 mm 12 23 mm
300 PN10 400 mm 12 23 mm

DN A mm C mm K mm
50 200 106 125
65 240 129 145
80 260 146 160
100 300 194 180
125 350 207 210
150 400 240 240
200 500 322 295
250 600 388 350
300 700 458 400
