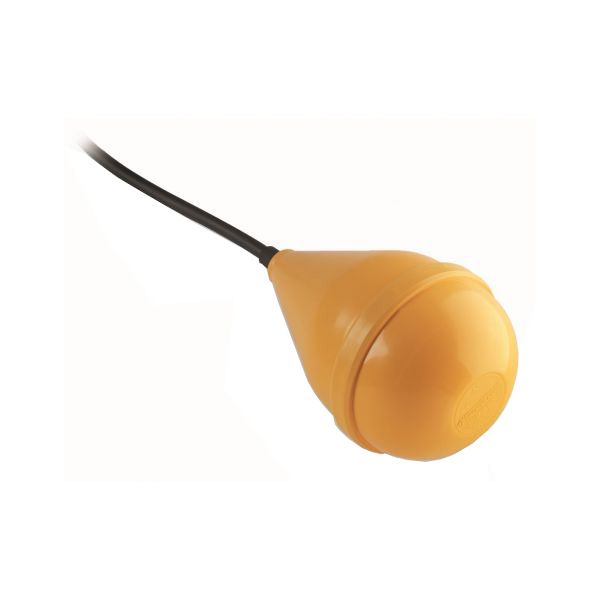

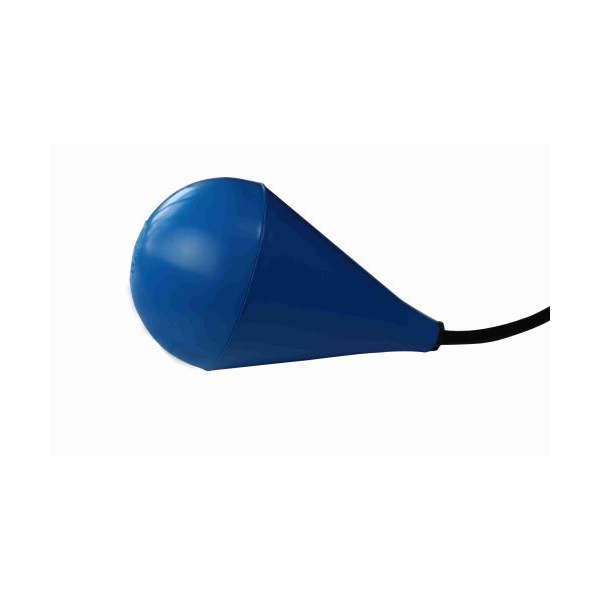

Heavy Duty Sewage Float Switch

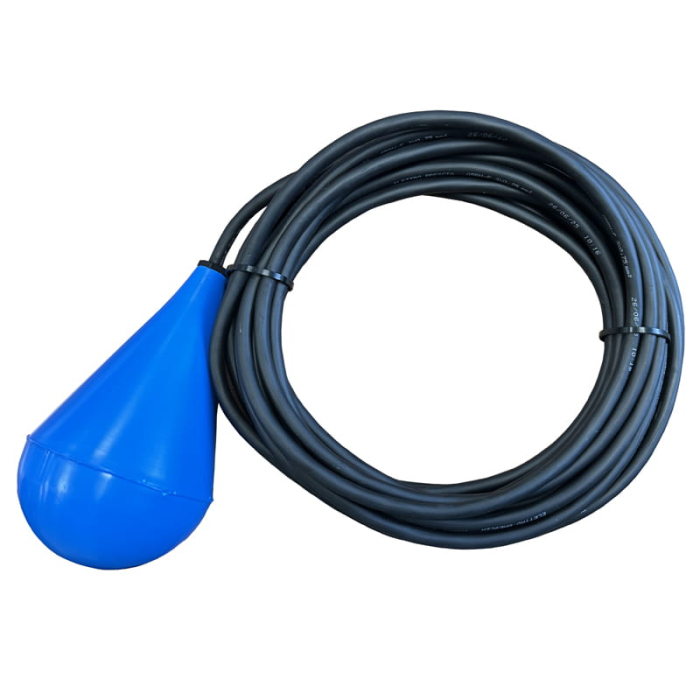

Heavy duty float switches for sewage pumps and tanks. This robust pump float switch is suitable for both sewage and wastewater applications and is available with a 10 or 20 metre cable.

The beauty of this float switch is that it has an integrated counterweight. This means that the float submerges under water unlike traditional float switches that float on the waters surface. This float switch also benefits from a 20º activation angle VS traditional float switches operating at 45º; this gives you more precise control.

This sewage pump float switch is reliable and long lasting thanks to it's 3 watertight chambers. The first watertight chamber has one float inside another one for double isolation. The second watertight chamber with metallic grit keeps the float submerged. The third watertight chamber always alows the overturn in any condition for reliable performance.

The sewer pump float switches can be used alone or in multiples. If there no space restrictions, we recommend using the float switches in pairs with one controlling minimum water level and the other controlling the maximum water level.

Specification
►Voltage: 230V
►Polypropylene construction
►Maximum liquid temperature: 50ºC
►Maximum submerged depth: 20 m
►Rated current: 8 A
►IP68 classification
►Wire gauge of 11mm
►Integrated counterweight
