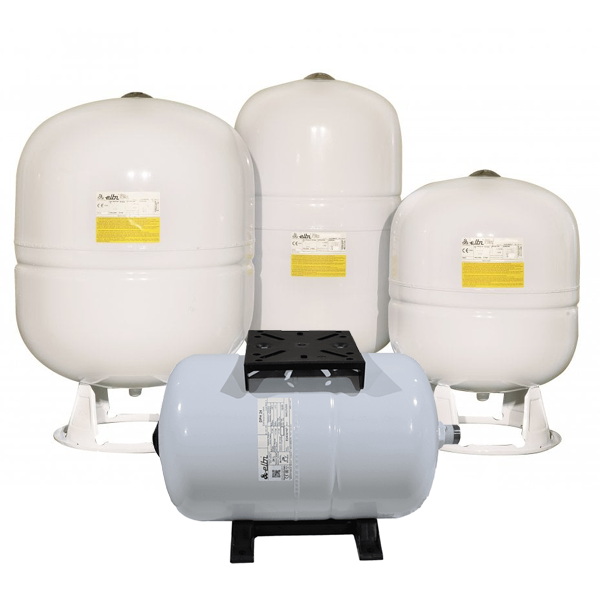

Elbi DP Expansion Vessels

Elbi DP multifunctional pressure vessels with fixed butyl diaphragm and insulated protective sheath suitable for drinking water, sanitary hot water systems, central heating and air conditioning systems.

Grouped product items
Model	Outlet	SKU	RRP	Our Price (ex VAT)
Model: DPH24 24 Litre Horizontal	Outlet: 1"	SKU: 1100-2040	RRP: £58.00	Our Price: £55.68 £46.40
Model: DPV50 50 Litre Vertical	Outlet: 1"	SKU: 1100-2015	RRP: £185.00	Our Price: £177.60 £148.00
Model: DPV100 100 Litre Vertical	Outlet: 1-1/4"	SKU: 1100-2020	RRP: £290.00	Our Price: £278.40 £232.00
Model: DPV200 200 Litre Vertical	Outlet: 1-1/4"	SKU: 1100-2025	RRP: £420.00	Our Price: £403.20 £336.00
Model: DPV300 300 Litre Vertical	Outlet: 1-1/4"	SKU: 1100-2030	RRP: £540.00	Our Price: £518.40 £432.00
Model: DPV500 500 Litre Vertical	Outlet: 1-1/4"	SKU: 1100-2035	RRP: £859.00	Our Price: £824.40 £687.00

Details

Elbi DP pressure vessels with fixed butyl membranes. These Elbi vessels are multifunctional designed to be used in both heating systems and to absorb the water expansion volume generated by changing temperatures in a sanitary hot or cold water system.

Both application types are possible, thanks to the expansion vessels protective sheath with patented crimping system. This means that the inner surface of the tank is corrosion resistant.

These Elbi pressure vessels are CE approved and suitable for drinking water.

For sanitary system installations, the Elbi expansion vessel must be installed in the cold water supply pipe (do not install in the hot water outlet).

This Elbi pressure vessel has a white, epoxy powder painted body which is long lasting.

Specifications
►Maximum working pressure: 10 bar (150psi)
►Maximum temperature: 99°C
►Stainless steel connection with hexagonal nut
►Fixed alimentary diaphragm in butyl
►Supplied pre-charged to 2.5 bar
►CE Approved
