Suitable applications include water circulation in heating, ventilation and air conditioning systems, pressure boosting in commercial buildings and irrigation systems.

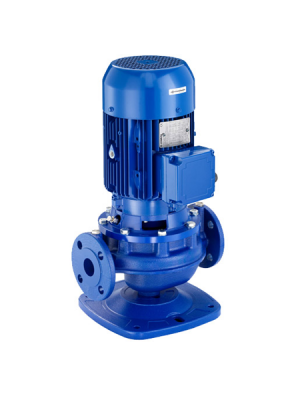

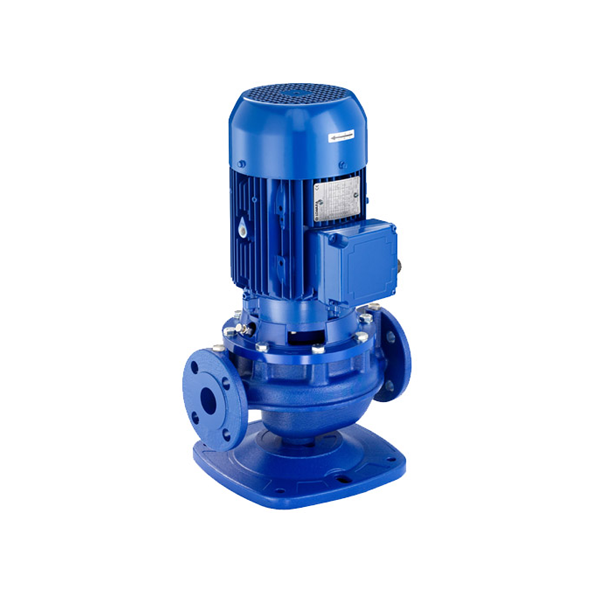

The e-LNE series are single impeller centrifugal, circulator pumps with in-line suction and discharge delivery flanges. One of the great new features of the e-LNE series is their 'back pull-out' design, which means the impeller, adapter and motor can be extracted without disconnecting the pump body from the piping system. All pumps are equipped with interchangeable mechanical seals and IE3 efficiency motors.
These Lowara circulator pumps are used for many different applications demanding variable duty points. Suitable applications include water circulation in heating, ventilation and air conditioning systems, pressure boosting in commercial buildings and irrigation systems.
Specifications
►Maximum liquid temperature: 120°C
►Maximum operating pressure: 16 bar
►IP55 Protection
►Class F insulation
Models listed above are all extended shaft versions (close coupled by means of an adapter bracket with an impeller keyed directly to the special motor shaft extension).
Stub shaft versions are available upon special request.
Please contact us on 01777 871100 if this construction better fits your requirements.
