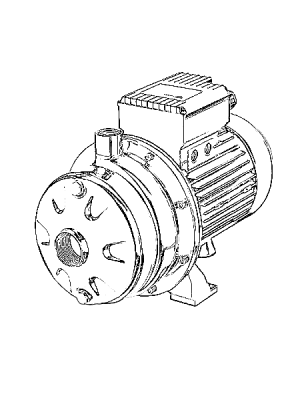

Ebara 2CDX M End Suction Centrifugal Pumps - 230V

Ebara 2CDX M twin impeller end suction centrifugal pumps are designed for transferring water or moderately aggressive fluids, where there is access to 230V power. These centrifugal water pumps are suitable for various domestic and industrial applications, including pressure boosting, water supply, treatment, irrigation and more.

Starting at £717.36 £597.80

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: 2CDX M 70/10 Voltage: 230V Motor: 0.75kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 39 m SKU: 111-017 RRP: £854.00 Our Price:
£717.36 £597.80
Model: 2CDX M 70/12 Voltage: 230V Motor: 0.90kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 45 m SKU: 111-018 RRP: £916.00 Our Price:
£769.44 £641.20
Model: 2CDX M 70/15 Voltage: 230V Motor: 1.10kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 53 m SKU: 111-019 RRP: £973.00 Our Price:
£817.32 £681.10
Model: 2CDX M 70/20 Voltage: 230V Motor: 1.50kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 60 m SKU: 111-020 RRP: £1,050.00 Our Price:
£882.00 £735.00
Model: 2CDX M 120/15 Voltage: 230V Motor: 1.10kW Inlet: 1-1/4" Outlet: 1" Maxflow: 150 l/min Maxhead: 42 m SKU: 111-021 RRP: £1,116.00 Our Price:
£937.44 £781.20
Model: 2CDX M 120/20 Voltage: 230V Motor: 1.50kW Inlet: 1-1/4" Outlet: 1" Maxflow: 150 l/min Maxhead: 52 m SKU: 111-022 RRP: £1,228.00 Our Price:
£1,031.52 £859.60

Ebara 2CDX M end suction centrifugal pumps are designed for transferring water or moderately aggressive fluids, where there is access to 230V power. These versatile centrifugal water pumps are suitable for multiple applications, including pressure boosting, water supply, treatment and irrigation, air conditioning systems and general water pumping. Thanks to their compact size, these Ebara end suction pumps are a preferable pumping solution for applications where there is limited space or difficult to reach spaces.

Supplied with a twin impeller, these horizontal end suction pumps have a wider performance range compared to the single-impeller version and provide smooth performance. A perfect pump solution for a range of domestic and industrial applications, these Ebara end suction pumps are manufactured using a hydroforming process which has significant advantages over traditional processes, including improved efficiency above 80%.

The 2CDX M centrifugal water pumps are also supplied with hydraulic components made from corrosion resistant AISI 304 stainless steel, which guarantees sturdiness, hydraulic efficiency and reliability. To further enhance the pump design, these end suction centrifugal water pumps can be supplied in AISI 316 stainless steel upon request to match your application requirements.

The beauty of the horizontal end suction centrifugal pumps is that they can be supplied with a range of different mechanical seal types to suit your application and fluid. The 2CDX M centrifugal water pump models above are capable of pumping water up to 60°C. However, if you’re pumping a different fluid or temperature, please contact our technical engineers, and they will advise you on the best pumping solution that matches your requirements.

Specifications
►Maximum liquid temperature: 60°C
110°C option available.
►Maximum suction lift: 9 Metres
►Maximum working pressure: 8 bar
►IP55 Protection

Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: AISI 304 Stainless Steel
►Shaft seal: Carbon/Ceramic/NBR

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure on the end suction centrifugal pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
