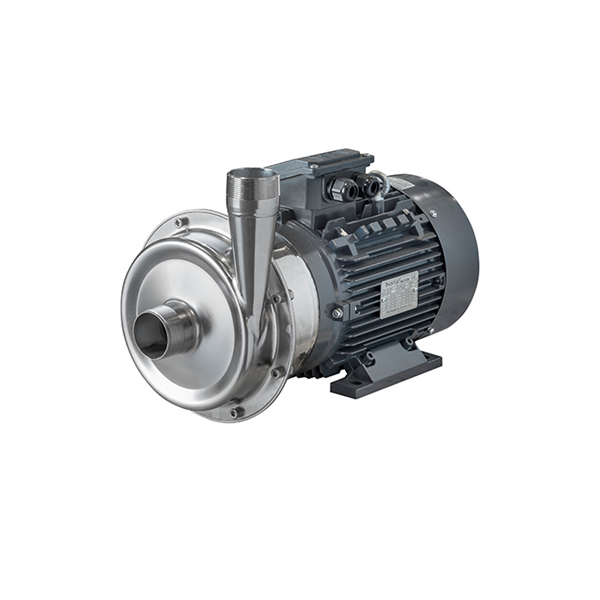

The ESTAMPINOX EFI hygienic pump manufactured by Inoxpa is a centrifugal pump specifically designed for sanitary applications, including the brewing, beverage, chemical, and pharmaceutical wine making industries. This sanitary pump is recommended for transferring water and low viscosity liquids and it is meticulously manufactured to ensure reliable, long-lasting operation.
To ensure long life, any ESTAMPINOX EFI hygienic pump parts in contact with the pumped media are manufactured from corrosion resistant AISI 316 stainless steel. The Inoxpa pump casing and impeller plate are also manufactured by cold-formed stainless steel for a long lasting finish and to comply with the hygienic requirements need for a range of industrial processes. This stainless steel sanitary pump has a compact, close-coupled design which is ideal for space-saving installation and it is supplied with a triphasic induction motor with B34 flange (B35 for motor frame 132), in compliance with the IEC standards. In addition, the Inoxpa centrifugal pump comes with IP55 protection and F-class insulation for added safety.
Specifications
►Maximum flow rate: Up to 65 m³/h
►Maximum liquid temperature: 120°C (as standard, please specify if pumping anything at a higher temperature)
►Maximum operating pressure: 6 bar
►IP55, class F insulation
Materials
►Parts in contact with media: AISI 316 stainless steel
►Other steel parts: AISI 304 stainless steel
►Gaskets: EPDM
Due to the complexity and quantity of ESTAMPINOX EFI hygienic centrifugal pump models available, we recommend that you call us on 01777 871100 to discuss your requirements with one of our technical engineers.
