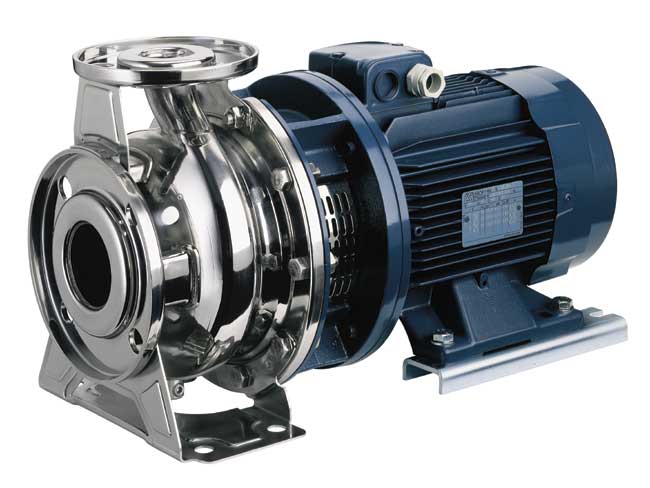

Ebara 3LS4 end suction centrifugal pumps are robust, high performance pumps designed for high pressure application and clean water transfer.
chevron-down chevron-up
12 options available from £1,352.40
Description
Downloads
Need help choosing? Send enquiry
Cancel

Options Available

Model: 3LS4 32-125/0.25 Voltage: 400V Motor: 0.25kW Inlet: DN 50 Outlet: DN 32 Maxflow: 160 l/min Maxhead: 5.5 m SKU: 111-080 RRP: £1,932.00
£1,352.40 £1,622.88
Loading...
Add to Basket
Model: 3LS4 32-160/0.37 Voltage: 400V Motor: 0.37kW Inlet: DN 50 Outlet: DN 32 Maxflow: 160 l/min Maxhead: 9 m SKU: 111-081 RRP: £2,174.00
£1,521.80 £1,826.16
Loading...
Add to Basket
Model: 3LS4 32-200/0.55 Voltage: 400V Motor: 0.55kW Inlet: DN 50 Outlet: DN 32 Maxflow: 160 l/min Maxhead: 12.5 m SKU: 111-082 RRP: £2,477.00
£1,733.90 £2,080.68
Loading...
Add to Basket
Model: 3LS4 32-200/0.75 Voltage: 400V Motor: 0.75kW Inlet: DN 50 Outlet: DN 32 Maxflow: 160 l/min Maxhead: 17 m SKU: 111-083 RRP: £2,621.00
£1,834.70 £2,201.64
Loading...
Add to Basket
Model: 3LS4 40-125/0.37 Voltage: 400V Motor: 0.37kW Inlet: DN 65 Outlet: DN 40 Maxflow: 350 l/min Maxhead: 6.5 m SKU: 111-084 RRP: £2,086.00
£1,460.20 £1,752.24
Loading...
Add to Basket
Model: 3LS4 40-160/0.55 Voltage: 400V Motor: 0.55kW Inlet: DN 65 Outlet: DN 40 Maxflow: 350 l/min Maxhead: 9 m SKU: 111-085 RRP: £2,389.00
£1,672.30 £2,006.76
Loading...
Add to Basket
Model: 3LS4 40-200/1.10 Voltage: 400V Motor: 1.10kW Inlet: DN 65 Outlet: DN 40 Maxflow: 350 l/min Maxhead: 12.5 m SKU: 111-086 RRP: £3,073.00
£2,151.10 £2,581.32
Loading...
Add to Basket
Model: 3LS4 40-200/1.50 Voltage: 400V Motor: 1.50kW Inlet: DN 65 Outlet: DN 40 Maxflow: 350 l/min Maxhead: 18 m SKU: 111-087 RRP: £3,333.00
£2,333.10 £2,799.72
Loading...
Add to Basket
Model: 3LS4 50-125/0.55 Voltage: 400V Motor: 0.55kW Inlet: DN 65 Outlet: DN 50 Maxflow: 600 l/min Maxhead: 6 m SKU: 111-088 RRP: £2,236.00
£1,565.20 £1,878.24
Loading...
Add to Basket
Model: 3LS4 50-160/1.10 Voltage: 400V Motor: 1.10kW Inlet: DN 65 Outlet: DN 50 Maxflow: 600 l/min Maxhead: 9 m SKU: 111-089 RRP: £3,022.00
£2,115.40 £2,538.48
Loading...
Add to Basket
Model: 3LS4 50-200/1.50 Voltage: 400V Motor: 1.50kW Inlet: DN 65 Outlet: DN 50 Maxflow: 600 l/min Maxhead: 13.5 m SKU: 111-090 RRP: £3,556.00
£2,489.20 £2,987.04
Loading...
Add to Basket
Model: 3LS4 50-200/2.20 Voltage: 400V Motor: 2.20kW Inlet: DN 65 Outlet: DN 50 Maxflow: 600 l/min Maxhead: 18 m SKU: 111-091 RRP: £3,556.00
£2,489.20 £2,987.04
Loading...
Add to Basket

Description

Ebara 3LS4 4 pole end suction centrifugal pumps are one of Ebara's most robust, sturdy and high-performance pumps available. Designed for high pressure applications and to transfer clean water, these centrifugal water pumps are ideal solutions for a range of commercial and industrial applications, including water boosting, heating systems, air conditioning, washing systems, fire fighting and irrigation. These horizontal end suction pumps have a compact design, making them a preferable pumping solution for installations with limited space and difficult to reach spaces.

Manufactured in accordance with EN733 and made from corrosion resistant AISI 316 stainless steel, these Ebara end suction pumps are a complete and reliable solution that can successfully operate even in the most difficult and heavy-duty conditions. The beauty of these end suction centrifugal pumps is that they have a back pull-out design; a pump construction which allows the removal of the impeller-motor block without disconnecting the pump body from the piping. This significantly reduces maintenance downtime if you experience any problems.

Ebara 3LS4 stainless steel end suction pumps are supplied with highly efficient motors that allow optimal performance and a high level of efficiency, reducing your pump's operational costs. These horizontal end suction centrifugal pumps come with Carbon /Ceramic/ NBR mechanical seal, but upon request, we can offer different mechanical seals to match your requirements and the pumped fluid. As standard, the Ebara 3LS4 centrifugal water pumps are supplied in stub shaft design, but they are also available in the following constructions to allow easy installation:
►Stub shaft (models listed above)
►Monobloc with extended shaft motor (3M)
►Bare shaft (available on request)
►Frame mounted (available on request)

Specifications
►Maximum liquid temperature: 110°C
►Maximum working pressure: 10 bar
►Maximum suction lift: 9 Metres

Materials
►Pump Body: AISI 316 Stainless Steel
►Impeller: AISI 316 Stainless Steel
►Shaft seal: Silicone/Silicone/FPM - Other mechanical seal types are available upon request

Ebara 3LS4 centrifugal pumps are available with ATEX certified hydraulics and motor (contact us for the ATEX version).

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure on the end suction centrifugal water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
