Double Action Float Switches for Diesel Fuel

Feefo logo
View delivery information
Price match guarantee, call 01777 871100 if you've seen it cheaper
Double action float switch for diesel oil which is moulded to a PUR polyurethane 3 core cable.
chevron-down chevron-up
3 options available from £35.23
Description
Downloads

View the full range:

Need help choosing? Send enquiry

Options Available

Model: LR-06 With 5 Metre Cable & Counterweight SKU: 2230-020
£35.23 £42.28
loader
Loading...
Add to Basket
Model: LR-06 With 10 Metre Cable & Counterweight SKU: 2230-021
£50.53 £60.64
loader
Loading...
Add to Basket
Model: LR-06 With 20 Metre Cable & Counterweight SKU: 2230-022
£79.43 £95.32
loader
Loading...
Add to Basket

Description

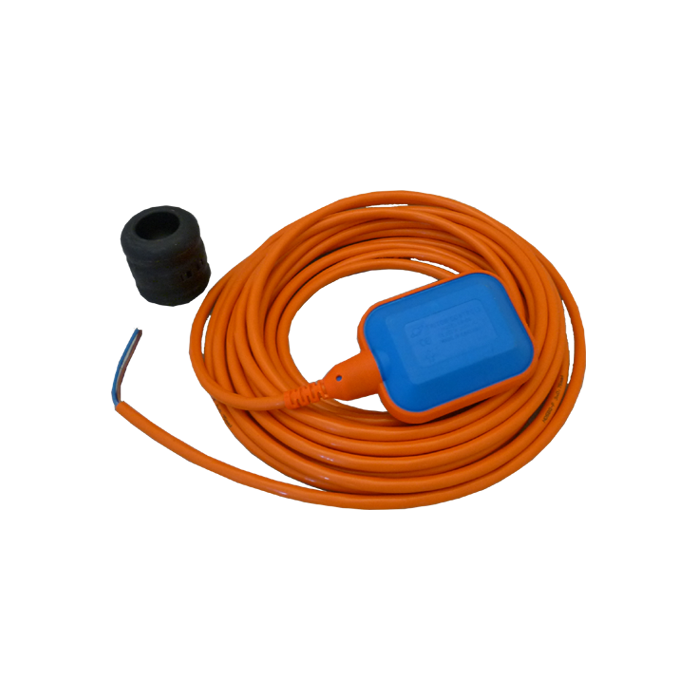

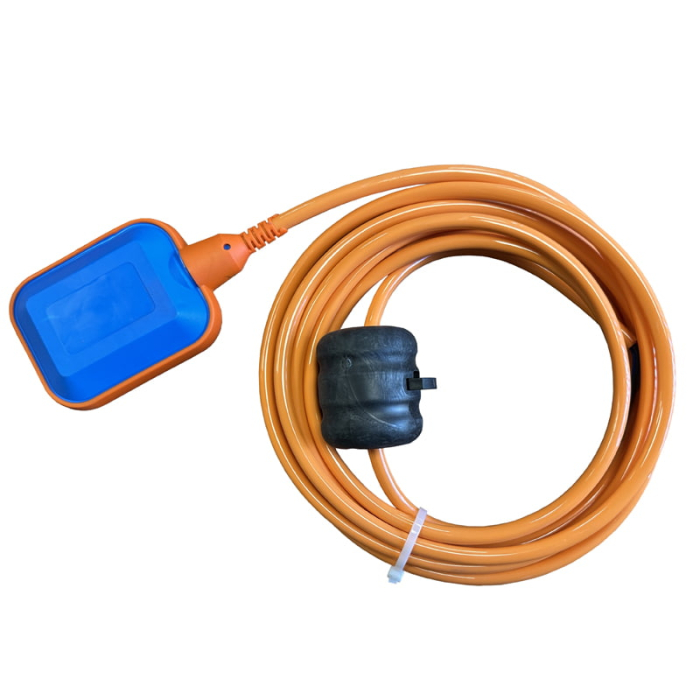

Double action float switch for diesel oil which is moulded to a PUR polyurethane 3 core cable.

Actuation is via a roller ball and micro-switch arrangement within the switch thereby eliminating all heavy metals.

Can be used for tank filling or emptying.

Specifications
►Maximum temperature: 70ºC
►Maximum submerged depth: 20 m
►Maximum current: 15 amp at 250v (non inductive) 10 amp at 250v (inductive)
►Counterweight included

Downloads
