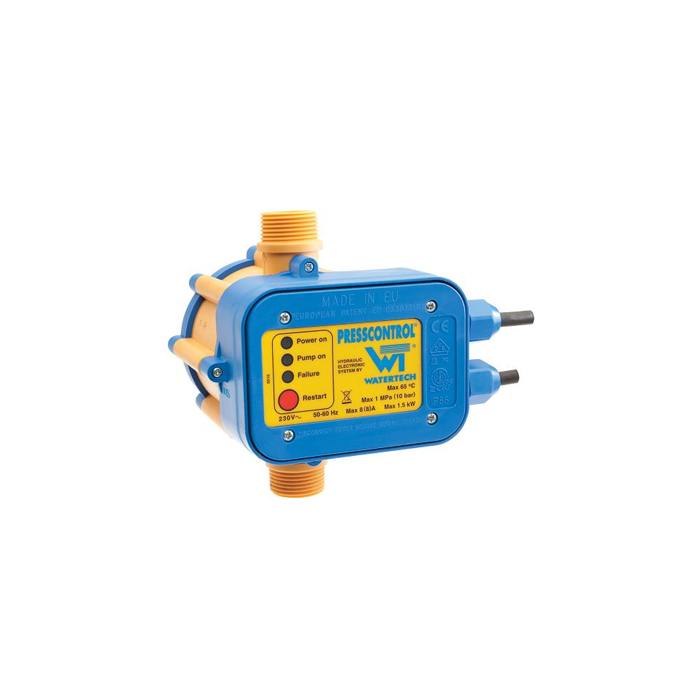

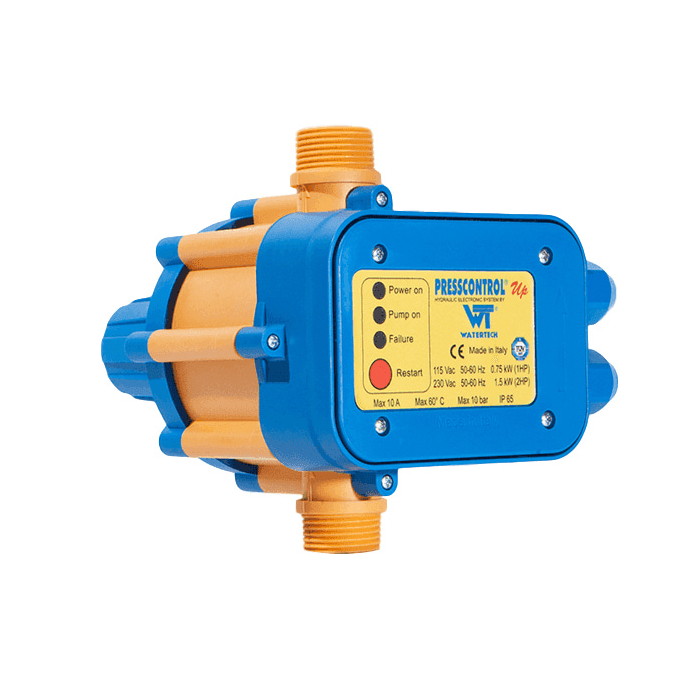

Presscontrol Automatic Pump Controller

Presscontrol is an automatic pump control, which starts and stops the pump ‘on demand’.
When a valve or tap is opened on the outlet side of the control, the Presscontrol senses the drop in pressure and instantly starts the pump when the pressure drops below 1.5 bar. When the valve is closed the pump continues to run for a further 10 seconds to prevent water hammer, and then stops ready for the next demand for water. If the pump runs out of water during operation, the Presscontrol will automatically shut down the pump to prevent damage from dry running. The control is then manually re-set once the water source is restored.

A diesel version is also available for diesel and bio diesel up to B30

Top Tips
"We recommend the addition of a
pressure vessel where the pump is supplying water through ball cocks. This is to prevent repetitive cycling of the pump as the valve closes."

Specifications
► Auto stop/start
► Dry run protection
► Must be installed vertically
► Manual re-start after dry run shut down
► Fixed start pressure 1.5 bar
► No water hammer
► Simple installation
► Max fluid temperature 65ºC
► Max pump size 1.5kW
► Protection IP65

Delivery Costs

Delivery map



Zone 1 England, Wales & Southern Scotland Under £50 £50-£99 Over £100
Standard 2/3 working days £6 £9.50 Free
Express Next working day £15 £15 £15
Premium Next working day AM £26 £26 £26
Zone 2 Highland  Under £50 £50- £99 Over £100
Standard 3/5 working days £6 £9.50 Free
Express 2/3 working days £15 £15 £15
Zone 3 Islands & Ireland Under £50 £50- £99 Over £100
Premium 3/5 working days £18 £18 £18
Zone 4  Please call us for delivery options to Euro- Zone countries



































Orders must be placed before 14:00pm for next day or premium delivery.

Write a review

Your Name:


Your Review: Note: HTML is not translated!

Rating: Bad           Good

Enter the code in the box below:



Model Voltage Current Inlet Outlet Max. Flow SKU Price ex-VAT Qty
Presscontrol (water) 230v 8 A 1" 1" 100 l/min 060-430 £73.60
Presscontrol (diesel) 230v 8 A 1" 1" 100 l/min 050-304 £103.50
Presscontrol (water) 110v 8 A 1" 1" 100 l/min 060-429 £87.20
