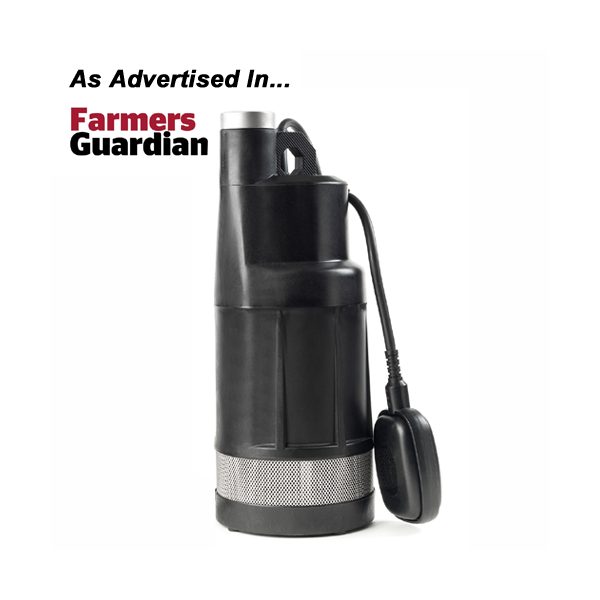

DAB Diver Submersible Multistage Pump

DAB Diver submersible multistage pumps are designed for transferring clean water. Suitable for use in wells, boreholes, deep tanks, cisterns, ponds and other applications which require high pressure, these submersible well water pumps have a compact and reliable design.
Grouped product items
Model Voltage Motor Outlet Max. Flow Max. Head Float Switch SKU RRP Our Price (ex VAT)
Model: Diver 6 800 MA Voltage: 230V Motor: 0.75 kW Outlet: 1" Maxflow: 90 l/min Maxhead: 46 m Floatswitch: YES SKU: 3613-003 RRP: £626.00 Our Price:
£450.72 £375.60

DAB Diver submersible multistage pumps are designed for transferring clean water. Built for use in wells, boreholes, deep tanks, cisterns and ponds, these submersible well pumps are ideal for applications which require high pressure. Typical application of these DAB Diver deep well submersible pumps includes rainwater harvesting and operating sprinklers/fountains. Carefully designed to provide the highest pump quality and efficiency, these electric submersible pumps are highly reliable solutions that require minimum maintenance.

DAB Diver submersible well water pumps are made with corrosion and oxidation-resistant materials, meaning that they have a high-quality and robust design that can withstand harsh environments. Benefitting from the excellent cooling of the motor, these submersible well pumps can operate efficiently even when they are not completely submerged. To enhance further the pump design and protect the pump’s motor, the DAB Diver deep well submersible pump are supplied with stainless steel debris strainer that can filter some of the debris or dirt lying at the bottom of the tank/well.

Available in automatic or manual versions, these submersible multistage pumps are easy to use and are supplied with thermal overheating protection. The automatic version of DAB Drive is a single-phase submersible water pump with a float switch for protection against dry running. This version does not require a control panel, as the starting capacitor and overheating thermal protection are integrated into the motor.

Specifications
►Maximum liquid temperature: 35°C
►Maximum immersion depth: 12 Metres
►Anti-corrosive and rust-proof materials
►Motor with thermal overload protection
►Stainless steel strainer
►Power cable: 10 metres with UK 3 pin plug

Supplied with non return valve and multi hose adapter.

As a submersible pump supplier over 25 years, we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the submersible well pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
