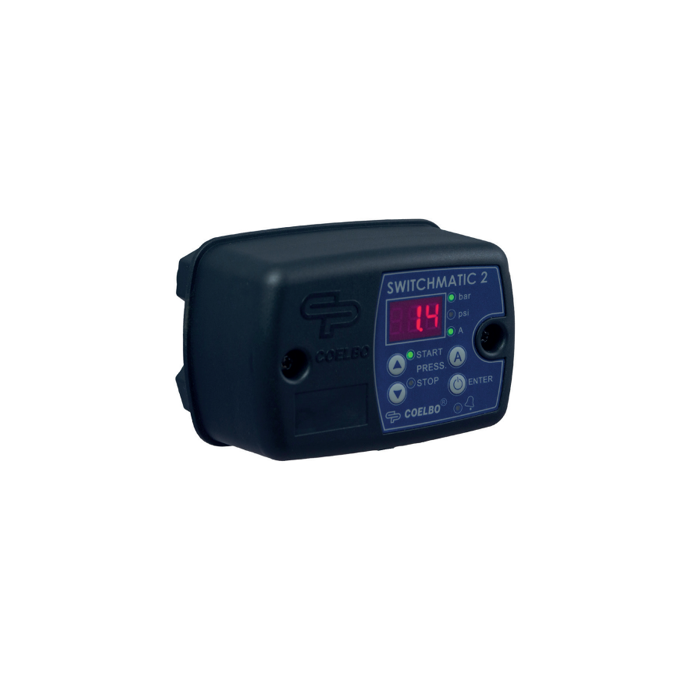

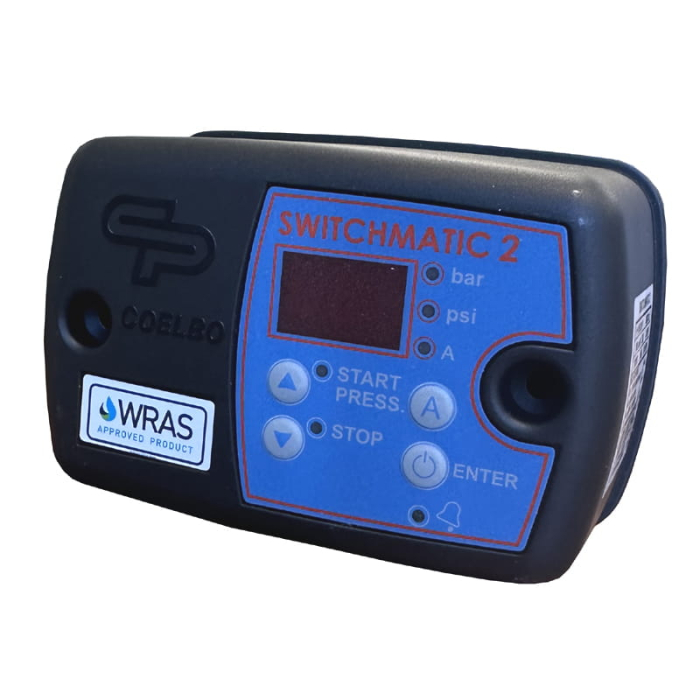

Switchmatic 2 Electronic Pressure Switch

Switchmatic 2 by Coelbo is an electronic pressure switch for controlling the start and stop of single phase electric pumps up to 3HP (2.2 kW) in conjunction with an expansion vessel.

Starting at £62.40 £52.00

Grouped product items
Model Voltage Current Motor Inlet Outlet SKU RRP Our Price (ex VAT)
Model: Switchmatic 2 Voltage: 110-230V Current: 16 A Motor: 2.2 kW Inlet: 1/4" BSPF Outlet: - SKU: 4439-005 RRP: £65.00 Our Price:
£62.40 £52.00
Model: T-Kit Switchmatic 2 Voltage: 110-230V Current: 16 A Motor: 2.2 kW Inlet: 1" BSPM Outlet: 1" BSPF SKU: 4439-005K RRP: £79.00 Our Price:
£75.84 £63.20
High quality, electronic pressure switches for controlling the start and stop of single phase electric pumps up to 3HP (2.2 kW) in conjunction with an expansion vessel. Switchmatic 2 pressure switches have an integrated digital pressure gauge, and the cut in and out pressure can be easily set and adjusted through the user friendly control panel.

Wiring is carried out identically to a conventional electric mechanical switch.

The Switchmatic 2 can operate as a differential pressure switch, as an inverted pressure switch, or just with maximum / minimum pressures.

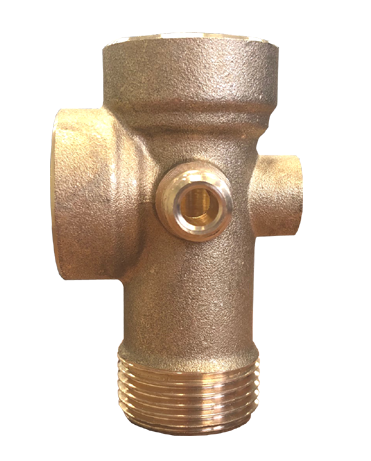

T-Kit Switchmatic 2 is integrated in a 3 way fitting.

Specifications
►Voltage 1 ~ 110 - 230V
►Maximum liquid temperature: 40°C
►Maximum Pressure: 8 bar
►Maximum Current: 16A

Protection
►Dry run with auto re-start
►Over-current
►Rapid cycle (frequent stop/start)
►Ingress: IP55
