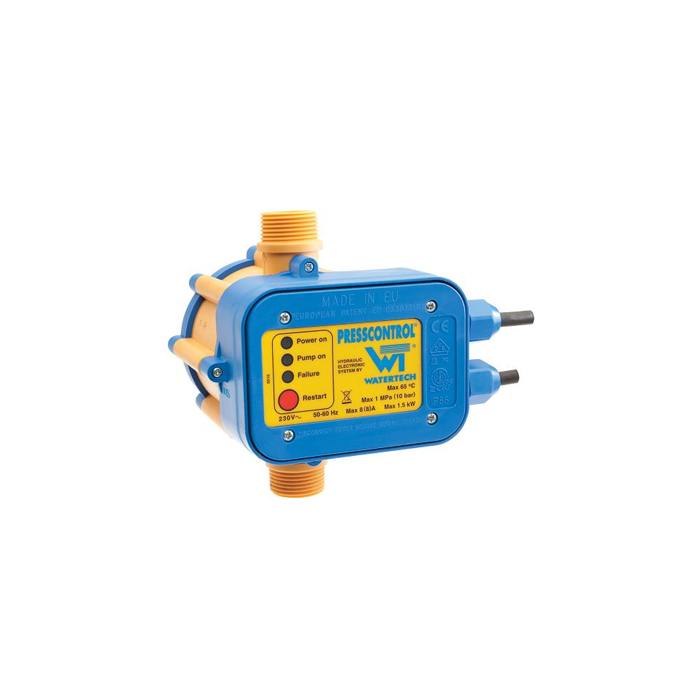

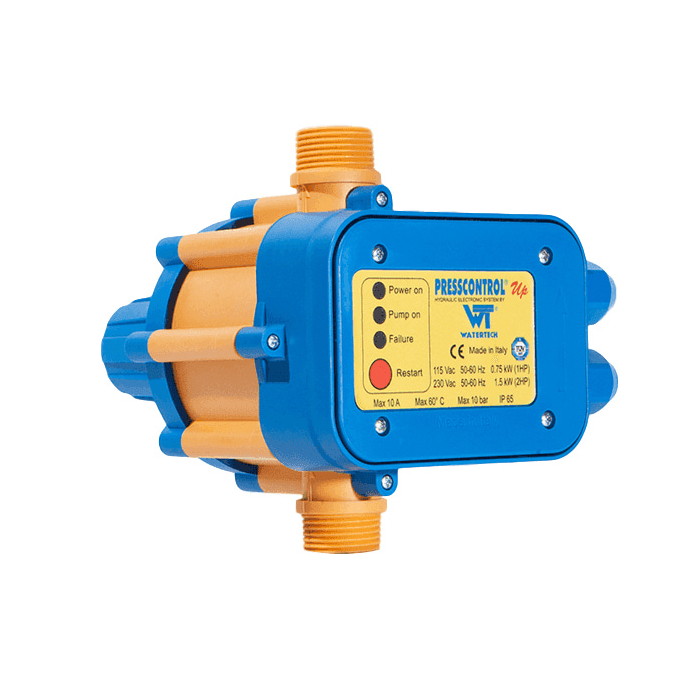

Presscontrol Automatic Pump Controller

Presscontrol is an automatic pump control, which starts and stops the pump ‘on demand’.
Grouped product items
Model Voltage Power Current Inlet Outlet Max. Flow SKU RRP Our Price (ex VAT)
Model: Presscontrol (water) Voltage: 230V Power: 1.5kW Current: 10 Amps Inlet: 1" Outlet: 1" Maxflow: 100 l/min SKU: 060-430 RRP: £95.00 Our Price:
£91.20 £76.00
Model: Presscontrol (diesel) Voltage: 230V Power: 1.5kW Current: 10 Amps Inlet: 1" Outlet: 1" Maxflow: 100 l/min SKU: 050-304 RRP: £123.00 Our Price:
£132.84 £110.70
Model: Presscontrol (water) Voltage: 110V Power: 0.75kW Current: 10 Amps Inlet: 1" Outlet: 1" Maxflow: 100 l/min SKU: 060-429 RRP: £92.00 Our Price:
£88.32 £73.60
Presscontrol is an automatic pump controller, which starts and stops the pump ‘on demand’.

When a valve or tap is opened on the outlet side of the control, Presscontrol senses the drop in pressure (below 1.5 bar) and instantly starts the pump. When the valve is closed the pump continues to run for a further 10 seconds to prevent water hammer, and then stops ready for the next demand for water. If the pump runs out of water during operation, the Presscontrol will automatically shut down the pump to prevent damage from dry running. Once the water supply is restored the Presscontrol can be manually re-set.

The Diesel model is suitable for diesel and bio diesel up to B30.

Specifications
►Auto stop/start
►Dry run protection
►Must be installed vertically
►Manual re-start after dry run shut down
►Fixed start pressure: 1.5 bar
►No water hammer
►Simple installation
►Maximum liquid temperature: 65ºC
►IP65 Protection

TOP TIP: We recommend the addition of a pressure vessel where the pump is supplying water through ball cocks. This is to prevent repetitive cycling of the pump as the valve closes.
