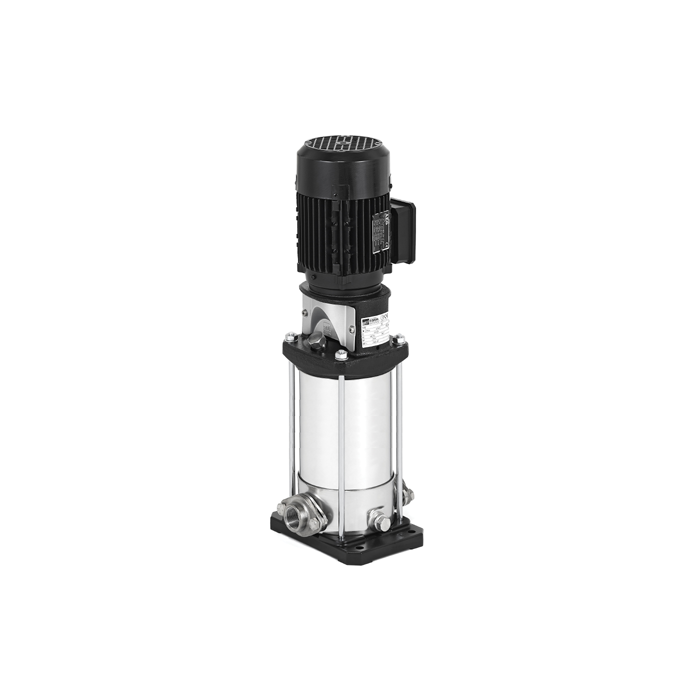

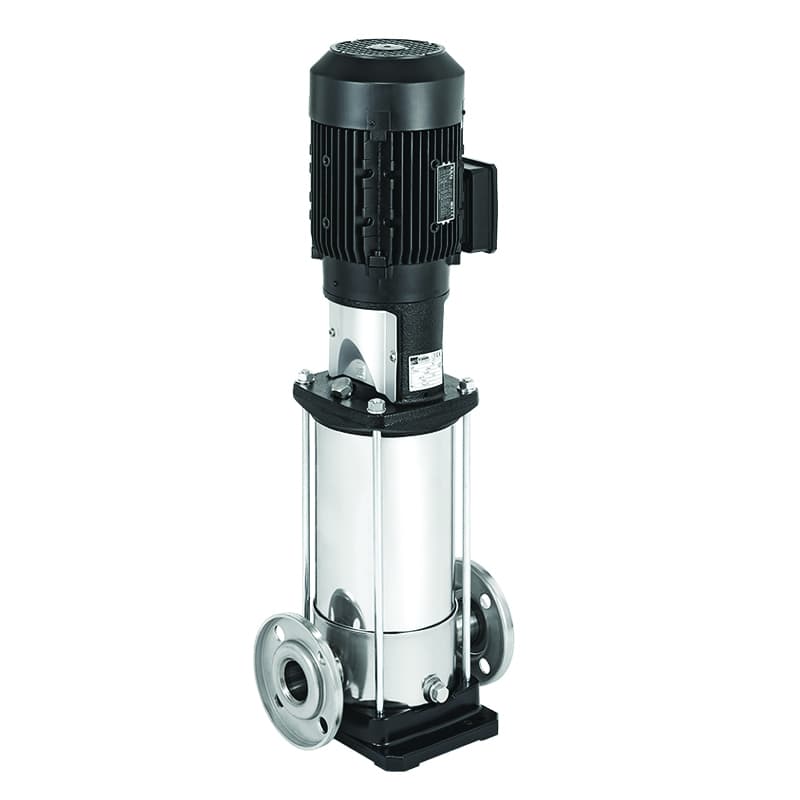

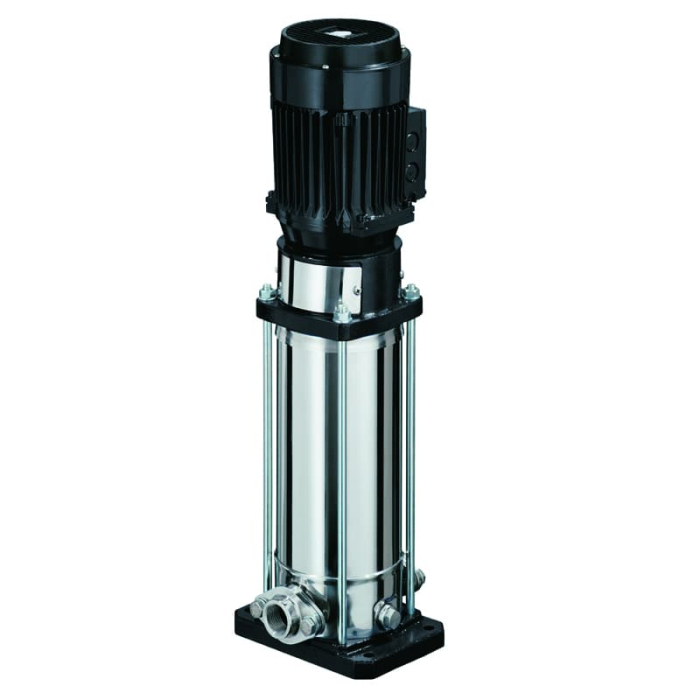

Ebara EVMS15 (N) 400V Vertical Multistage Pumps

Ebara EVMS15 (N) 400V vertical multistage pumps are the higher flow (400l/min) models of the Ebara EVMS (N) series. These robust and versatile Ebara water pumps are designed to transfer clean and coloured water in high-pressure applications and are suitable for a range of industrial and commercial uses. To further enhance the pump design, these multistage pumps come with innovative hydraulic features and energy-saving IE3 electric motors.

Starting at £1,480.08 £1,233.40

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS15 1N5/1.1 Voltage: 400V Motor: 1.1 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 14.7 m SKU: 112-684 RRP: £1,762.00 Our Price:
£1,480.08 £1,233.40
Model: EVMS15 2N5/2.2 Voltage: 400V Motor: 2.2 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 29.5 m SKU: 112-685 RRP: £2,130.00 Our Price:
£1,789.20 £1,491.00
Model: EVMS15 3N5/3 Voltage: 400V Motor: 3 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 44.5 m SKU: 112-686 RRP: £2,457.00 Our Price:
£2,063.88 £1,719.90
Model: EVMS15 4N5/4 Voltage: 400V Motor: 4 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 59 m SKU: 112-687 RRP: £2,816.00 Our Price:
£2,365.44 £1,971.20
Model: EVMS15 5N5/5.5 Voltage: 400V Motor: 5.5 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 73.5 m SKU: 112-688 RRP: £2,956.00 Our Price:
£2,483.04 £2,069.20
Model: EVMS15 6N5/5.5 Voltage: 400V Motor: 5.5 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 88.5 m SKU: 112-689 RRP: £3,595.00 Our Price:
£3,019.80 £2,516.50
Model: EVMS15 7N5/7.5 Voltage: 400V Motor: 7.5 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 103 m SKU: 112-690 RRP: £4,130.00 Our Price:
£3,469.20 £2,891.00
Model: EVMS15 8N5/7.5 Voltage: 400V Motor: 7.5 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 118 m SKU: 112-691 RRP: £4,199.00 Our Price:
£3,527.16 £2,939.30
Model: EVMS15 9N5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 133 m SKU: 112-692 RRP: £4,388.00 Our Price:
£3,685.92 £3,071.60
Model: EVMS15 10N5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 147 m SKU: 112-693 RRP: £5,175.00 Our Price:
£4,347.00 £3,622.50
Model: EVMS15 11N5/11 Voltage: 400V Motor: 11 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 162 m SKU: 112-694 RRP: £5,561.00 Our Price:
£4,671.24 £3,892.70

Ebara EVMS15 (N) vertical multistage pumps are the higher flow (400l/min) models of the Ebara EVMS (N) series, designed for transferring clean and clouded water. These Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors, ensuring high pump efficiency. These multistage centrifugal pumps are suitable for pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting, and can be used where there is access to 400V power.

The beauty of these vertical multistage centrifugal pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump without any modifications. In addition, Ebara EVMS multistage centrifugal pumps have a cartridge type shaft seal, allowing for a quick and easy cartridge replacement without disassembling the motor mount (see video). These Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

The Ebara EVMS (N) series of multistage water pumps are supplied with an oval flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.



WRAS Approved





Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
