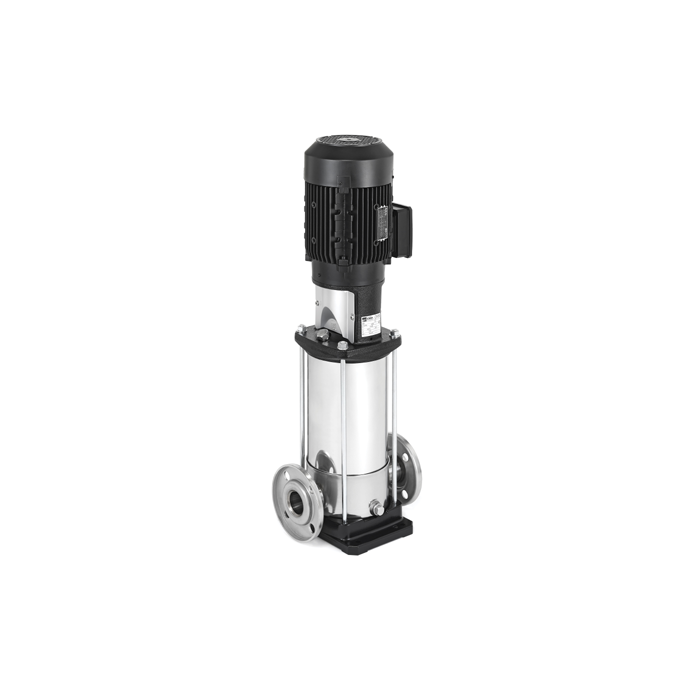

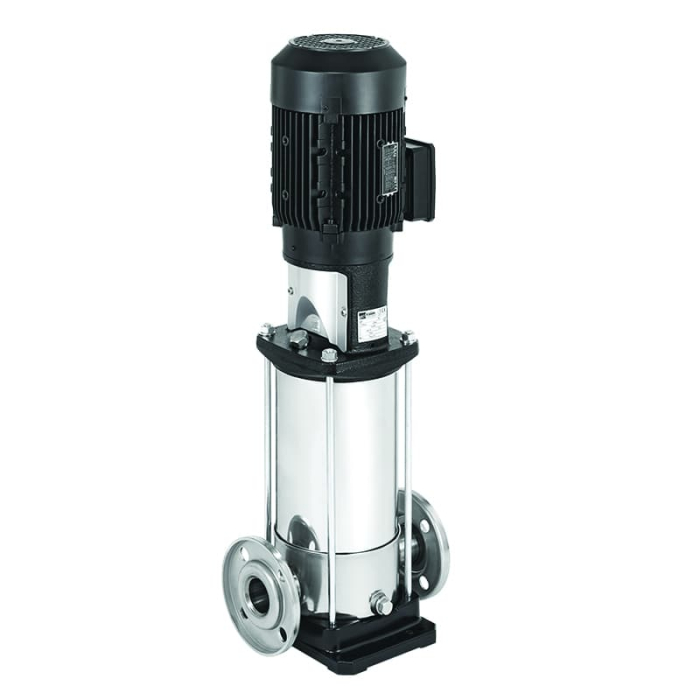

Ebara EVMS15 (F) 230V Vertical Multistage Pumps

Ebara EVMS15 (F) 230v vertical multistage pumps are the higher flow (400l/min) models of the Ebara EVMS (F) series, designed to transfer clean and coloured water in high-pressure applications. These Ebara water pumps are suitable for a range of industrial and commercial uses such as pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems, and even fire fighting.

Starting at £1,627.92 £1,356.60

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: EVMS15 2F5/2.2M Voltage: 230V Motor: 2.2 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 29.5 m SKU: 112-515 RRP: £2,344.00 Our Price:
£1,968.96 £1,640.80
Model: EVMS15 1F5/1.1M Voltage: 230V Motor: 1.1 kW Inlet: 2" Outlet: 2" Maxflow: 400 l/min Maxhead: 14.7 m SKU: 112-514 RRP: £1,938.00 Our Price:
£1,627.92 £1,356.60

Ebara EVMS15 (F) vertical multistage pumps are the higher flow (400l/min) models of the Ebara EVMS (F) series, designed for transferring clean and clouded water. These Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors, ensuring high pump efficiency. These multistage centrifugal pumps are suitable for pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting, and can be used where there is access to 230V power.

The beauty of these Ebara pumps is that they have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane® impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump models without any modifications. In addition, these veertical multistage centrifugal pump has a cartridge type shaft seal, which allows for a quick and easy cartridge replacement without disassembling the motor mount (see video). Supplied with spacer coupling for easy maintenance and smart plug solution, these Ebara water pumps offer multiple advantages that improve the pump durability, reliability and ensure long service life.

The Ebara EVMS (F) series of multistage water pumps are supplied with a round flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
►Maximum liquid temperature: 120°C
►WRAS Approved
►IP55 Protection
►Insulation class: F

Materials
►Pump body: AISI 304 Stainless steel
►Impeller: AISI 304 Stainless steel
►Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.



WRAS Approved



Whisper Pumps is a longstanding Ebara pump supplier, meaning we are highly experienced in all models. If you are unsure of the multistage pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
