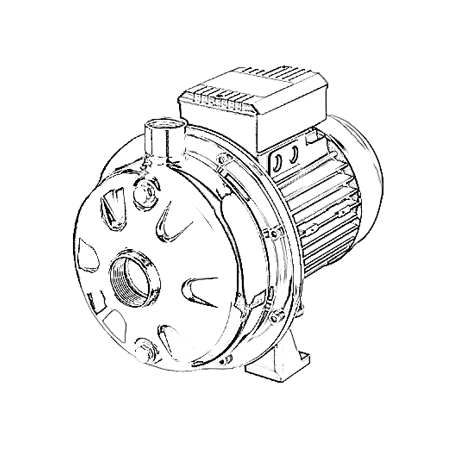

Ebara CDX M End Suction Centrifugal Pumps - 230V

Ebara CDX M end suction centrifugal pumps are one of our bestselling Ebara pumps, designed to be used where there is access to 230V power. Suitable for a multitude of domestic, commercial or industrial applications, these centrifugal water pumps are a popular choice for hot wort transfer in breweries if fitted with one of our unique brewery seals.

Starting at £533.40 £444.50

Grouped product items
Model Voltage Motor Inlet Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: CDX M 70/05 Voltage: 230V Motor: 0.37kW Inlet: 1-1/4" Outlet: 1" Maxflow: 90 l/min Maxhead: 21 m SKU: 111-000 RRP: £635.00 Our Price:
£533.40 £444.50
Model: CDX M 70/05 + Brewery Seal Voltage: 230V Motor: 0.37kW Inlet: 1-1/4" Outlet: 1" Maxflow: 90 l/min Maxhead: 21 m SKU: 111-000X RRP: £635.00 Our Price:
£653.40 £544.50
Model: CDX M 70/07 Voltage: 230V Motor: 0.55kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 28 m SKU: 111-001 RRP: £646.00 Our Price:
£542.64 £452.20
Model: CDX M 70/07 + Brewery Seal Voltage: 230V Motor: 0.55kW Inlet: 1-1/4" Outlet: 1" Maxflow: 80 l/min Maxhead: 28 m SKU: 111-001X RRP: £646.00 Our Price:
£662.64 £552.20
Model: CDX M 90/10 Voltage: 230V Motor: 0.75kW Inlet: 1-1/4" Outlet: 1" Maxflow: 110 l/min Maxhead: 31 m SKU: 111-002 RRP: £825.00 Our Price:
£693.00 £577.50
Model: CDX M 120/07 Voltage: 230V Motor: 0.55kW Inlet: 1-1/4" Outlet: 1" Maxflow: 180 l/min Maxhead: 21 m SKU: 111-003 RRP: £913.00 Our Price:
£766.92 £639.10
Model: CDX M 120/12 Voltage: 230V Motor: 0.90kW Inlet: 1-1/4" Outlet: 1" Maxflow: 160 l/min Maxhead: 30 m SKU: 111-004 RRP: £1,023.00 Our Price:
£859.32 £716.10
Model: CDX M 120/20 Voltage: 230V Motor: 1.50kW Inlet: 1-1/4" Outlet: 1" Maxflow: 160 l/min Maxhead: 38 m SKU: 111-005 RRP: £1,212.00 Our Price:
£1,018.08 £848.40
Model: CDX M 200/12 Voltage: 230V Motor: 0.90kW Inlet: 1-1/2" Outlet: 1" Maxflow: 250 l/min Maxhead: 21 m SKU: 111-006 RRP: £1,081.00 Our Price:
£908.04 £756.70
Model: CDX M 200/20 Voltage: 230V Motor: 1.50kW Inlet: 1-1/2" Outlet: 1" Maxflow: 250 l/min Maxhead: 31 m SKU: 111-007 RRP: £1,216.00 Our Price:
£1,021.44 £851.20

Ebara CDX M centrifugal water pumps are one of our bestselling Ebara end suction pumps, designed to be used where there is access to 230V power. These versatile end suction water pumps are suitable for multiple applications, including pressure boosting, water supply, treatment and irrigation, air conditioning systems and general water pumping. Ebara CDX end suction centrifugal pumps are also commonly used as hot wort transfer pumps in the brewery industry (if fitted with one of our unique brewery seals) due to their simple and low maintenance design.

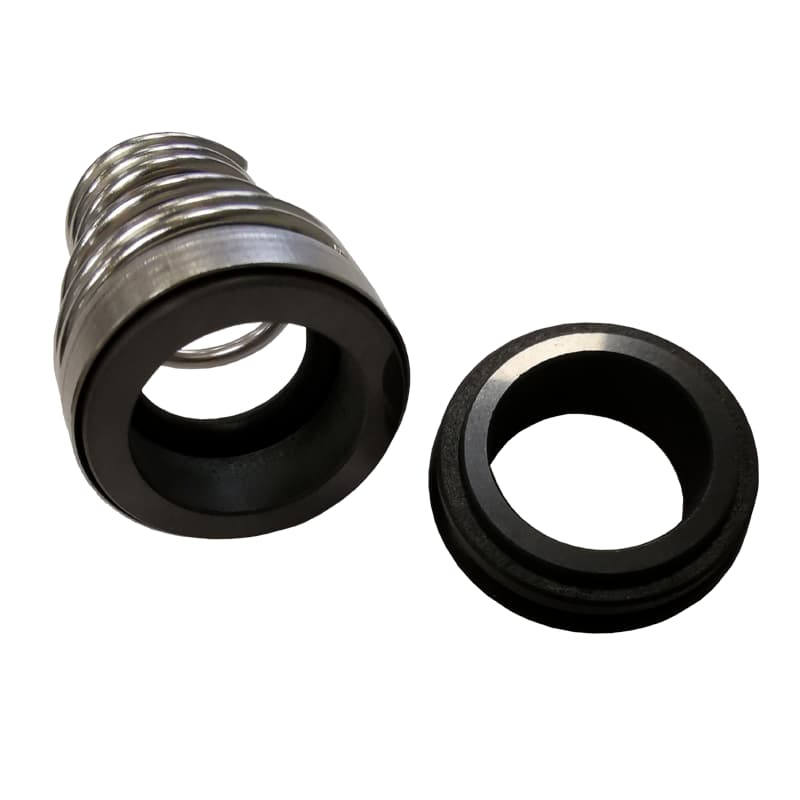

Supplied with our brewery seal, these horizontal end suction pumps can withstand the high wort temperature and prevent the crystallisation of sugars on the faces of the mechanical seal, eliminating the risk of brewery pump leaking and pump damage.

Ebara CDX M end suction centrifugal pumps are supplied with hydraulic components made from corrosion resistant AISI 304 stainless steel to enhance the robust pump design further. In addition, these centrifugal water pumps can be supplied in AISI 316 stainless steel upon request to match your application requirements. A perfect pump solution for a range of domestic and industrial applications, these Ebara CDX M end suction centrifugal water pumps are manufactured using a hydroforming process which has significant advantages over traditional processes, including improved efficiency above 80% and low losses.

These single stage end suction centrifugal pumps are available with a range of different mechanical seal types to suit your application and fluid. As standard, the CDX M horizontal end suction pump models above are capable of pumping water up to 60°C or 90°C (depending on which model you choose). If you're pumping a different fluid or temperature, please contact us, and one of our technical engineers will advise you on the best pumping solution that matches your requirements.

Specifications
►Maximum liquid temperature:
60°C for CDX 70/05, 70/07 & 90/10
90°C for CDX 120/07, 120/12, 120/20, 200/12 & 200/20
110°C & 120°C option available.
►Maximum suction lift: 9 Metres
►Maximum working pressure: 8 bar
►Maximum soft solids: 50 mm
►IP55 Protection

Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: AISI 304 Stainless Steel
►Shaft seal: Carbon/Ceramic/NBR

Whisper Pumps have been supplying Ebara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure on the end suction pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
